SCHNEIDER ELECTRIC

Schneider Electric Emergency Stop Push Button, Type of Operator: 40mm Mushroom Head, Size: 22mm, Action: Maintained Pus

Hover over image to magnify

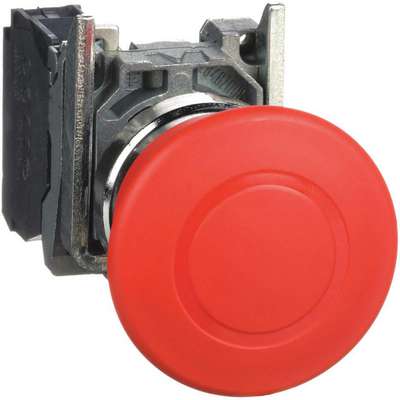

Emergency Stop Push Button,Red
PI_Asset_1365091
Emergency Stop Push Button,Red
PI_Asset_1365091

#917132-9 | Pkg Qty: 1

$88.28 pkg | $88.28 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
Maintained Push/Maintained Pull
Material
Metal
Basic Material
Metal
Material of Construction
Die Cast Zinc
Bezel
Chrome Plated Zinc Die Cast
Mfr. Part Number
XB4BT842
Brand
SCHNEIDER ELECTRIC
NEMA Contact Rating Designation
A600/Q600
Color Family
Red
NEMA Rating
1, 2, 3, 4, 4X, 12, 13
Contact Form
1NC
Number of Operators
1
Contact Rating
10 A @ 600 VAC
Pack Quantity
1
Head Material
Plastic
Product Size
22 mm
IP Rating
66
Shipping Weight
.25 lb.
Illuminated / Non-Illuminated
Non-Illuminated
Size
22 mm
Item
Emergency Stop Push Button
Terminal Connection
Screw Clamp
Legend
No Legend
Type of Operator
40 mm Mushroom Head
General
Features
Panel Mounting
Standards
EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60364-5-53, EN/ISO 13850, JIS C 4520, UL508, CSA C22.2 N.14

Product Description

This emergency stop mushroom-head push button is offered as a complete unit. It includes an operator, cap, and contact block for easy installation.
