SQUARE D

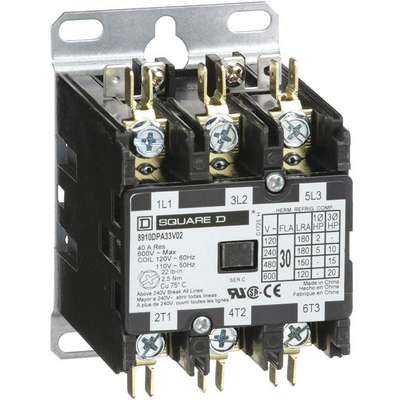

Square D 120VAC Definite Purpose Contactor; No. of Poles 3, 30 Full Load Amps-Inductive

Hover over image to magnify
Definit Prpose Cntctr,120VAC,
PI_Asset_1371761
Definit Prpose Cntctr,120VAC,
PI_Asset_1371761
Square D 120VAC Definite Purpose Contactor; No. of Poles 3, 30 Full Load Amps-Inductive Video
Square D 120VAC Definite Purpose Contactor; No. of Poles 3, 30 Full Load Amps-Inductive Video

#917095 | Pkg Qty: 1

$102.53 pkg | $102.53 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
Nonreversing
Item
Definite Purpose Contactor
Brand
SQUARE D
Mfr. Part Number
8910DPA33V02
Coil Volts
120 VAC
Number of Poles
3
Depth
3.12 in.
Pack Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Series
Standard
Height
4 in.
Shipping Weight
.99 lb.
Hz
50/60
Width
2-1/2 in.
General
Contactor Type
Definite Purpose
HP @ 3 Phase - 230V
10
Full Load Amps-Inductive
30 A
HP @ 3 Phase - 240V
10 hp
Full Load Amps-Resistive
40 A
HP @ 3 Phase - 480V
15 hp
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 575V
15 hp
HP @ 1 Phase - 230V
5
Includes
Quick Connect Terminal
HP @ 1 Phase - 240V
5 hp
Standards
UL, CSA, CE

Product Description

This Square D™ Magnetic Definite Purpose Contactor is an open style, 3-pole contactor. It has double-break contacts to help improve safety. Auxiliary contact modules snap onto either side for fast expansion. The combination of quick-connect terminals and binder head screws along with the industry-standard mounting help provide easy wiring and installation. A Type-1 enclosure and DIN rail-mounting bracket (sold separately) may help reduce installation costs. 120VAC coil volts. 30A (inductive) and 40A (resistive). 600V max. Mechanical life is approximately 500,000 operations. Suitable for heating, air conditioning, and refrigeration applications.
