THOMAS

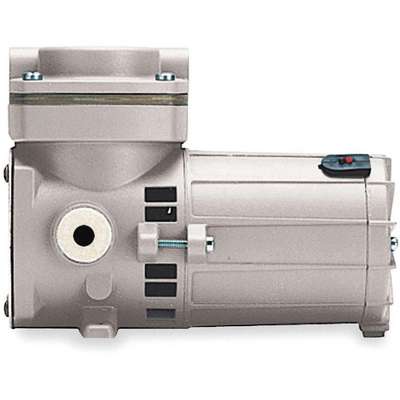

Piston Air Compressor: 0.1 hp, 1 Phase, 12V DC, 100 psi Max Continuous Pressure, 0.27 cfm
Hover over image to magnify
#917077-9 | Pkg Qty: 1
$473.23 pkg | $473.23 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Inlet
1/8 in.
Mfr. Part Number
405ADC38/12
Air Consumption
scfm
Number of Cylinders
1
Brand
THOMAS
Overall Height
5-1/3 in.
Cylinder Material
Aluminum
Overall Length
7-1/2 in.
Cylinders
1
Overall Width
4-1/4 in.
Finish
Gray
Package Quantity
1
Free Air CFM @ 0 PSI
0.79
RPM
3450
Free Air CFM @ 50 PSI
0.41
Rating
Continuous Duty
Free Air CFM @ 90 PSI
0.31
Shipping Weight
5.35 lb.
Full Load Amps
10-1/2
Type
Piston Air
Horsepower
1/10
Valve
Corrosion Resistant Sandwich
Item
Piston Air Compressor
Voltage
12 VDC
Lubrication Type
Oil-Less
Width
4-1/4 in.
Maximum PSI Cont./Int.
100/100
General
Air Tank Style
Tankless
Maximum Continuous Pressure
100 psi
Compressor Pump Style
Rocking
Maximum Intermittent Pressure
100 psi
Free Air CFM @ 100 PSI
0.24
Maximum Pressure Cont/Int
100 psi / 100 psi
Free Air CFM @ 20 PSI
0.61
Output Power
0.1 hp
Free Air Flow Rate
0.27 cfm
Piston Type
WOB-L
HP
1/10 hp
Sound Rating
63 dBA @ 60 psi
Product Description
Unit features rugged flexible piston cup and shaded-pole motor with high-torque start windings. Corrosion-resistant sandwich valve stops foreign particles from lodging on valve seats. Aluminum cylinder heads and pistons.
- Continuous-duty rated
- Quiet-running
