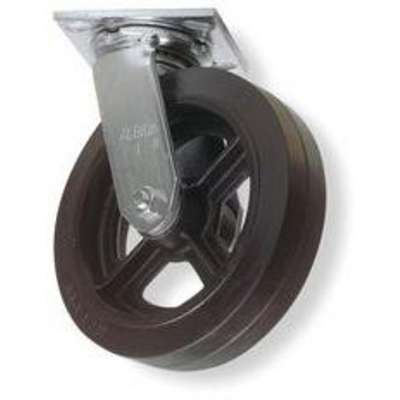

Light- Medium Duty, Swivel NSF-Listed Sanitary Plate Caster; 600 lb. Load Rating, 8" Wheel Dia.

Hover over image to magnify
Swivel Plate Caster,600 Lb,8
PI_Asset_948983
PI_Asset_948984
PI_Asset_948985
Swivel Plate Caster,600 Lb,8
PI_Asset_948983
PI_Asset_948984
PI_Asset_948985

#917075-3 | Pkg Qty: 1

$40.33 pkg | $40.33 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
NSF-Listed Sanitary Plate Caster
Caster Brake Included
No
Load Rating
600 lb.
Caster Brake Type
No Brake Included
Mfr. Part Number
16MR08201S
Caster Core Material
Cast Iron
Mounting Bolt Diameter
7/16 in.
Caster Load Rating Range
Light- Medium Duty
Mounting Height
9-1/2 in.
Caster Plate Hole Pattern
B
Non-Marking
No
Caster Plate Size
4 in. x 4-1/2 in.
Number of Mounting Holes
4
Caster Raceway
Double Ball
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel Bearings
Roller
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Swivel
Caster Wheel/Tread Material
Rubber
Replacement Wheel
Mfr. No. MR0820112
Core Color
Black
Shipping Weight
9 lb.
Durometer
75 Shore A
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Wheel Color
Black
Frame Material
Steel
Wheel Diameter
8 in.
Includes Thread Guards
No
Wheel Width
2 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel/Tread Hardness Rating
Soft
General
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4 1/2 in (B)
Caster Frame Material
Steel
Standards
ANSI/ICWM,NSF
Caster Max. Temp.
180°F
Swivel Lock Type
No Lock Included
Caster Min. Temp.
-40°F
Swivel Raceway Type
Double Ball
Caster Plate Thickness
1/4"
Thread Guards
No
Caster Product Group
Swivel Caster
Tread Shape
Standard
Caster Temp. Range Available
Yes
Wheel Bearing Type
Roller
Extended Lead
No
Wheel Core Material
Cast Iron
Load Rating Range
300 to 999 lb
Wheel Dia.
8 in
Mounting Bolt Dia.
7/16 in
Wheel/Tread Hardness
75 Shore A
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Rubber
Mounting Plate Size
4 in x 4 1/2 in

Product Description

Medium-duty NSF-listed sanitary plate casters are made of thicker steel and can bear heavier loads, tolerate more frequent use, and withstand more shock and impact than light-duty NSF-listed sanitary plate casters. They have double ball swivel bearings and swivel more smoothly than casters with single ball swivel bearings. These medium-duty plate casters are suitable for use on carts, racks, storage cabinets, waste-disposal trucks, troughs, and other equipment used in food-service areas, food-manufacturing facilities, industrial manufacturing plants, laboratories, and similar environments where the casters will be rolling over smooth, flat surfaces.

NSF-listed sanitary plate casters are built to satisfy the National Sanitation Foundation's (NSF) rigorous testing requirements for casters that are used in environments where they will be exposed to frequent washdowns, oils, or chemicals. They are suitable for use in environments where sanitary conditions must be maintained. These casters have a mounting plate that installs onto the bottom of carts, prep tables, food-service equipment, racks, and similar items. They are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
