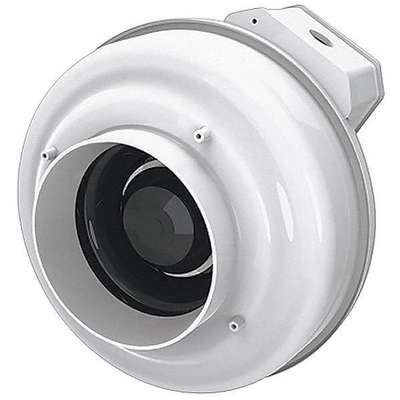

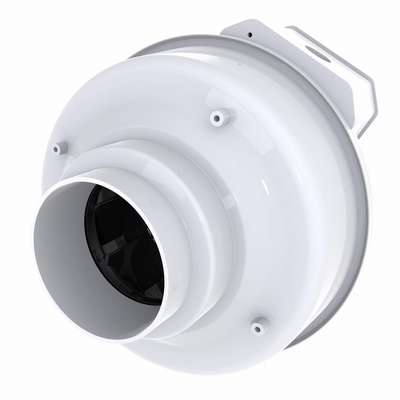

Fantech Thermoplastic Inline Centrifugal Duct Fan, Fits Duct Dia. 4", Voltage 120 V

Hover over image to magnify
Inline Centrifugal Duct Fan,4
PI_Asset_965595
Inline Centrifugal Duct Fan,4
PI_Asset_965595

#916968-3 | Pkg Qty: 1

$194.79 pkg | $194.79 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
C-UL-US
Mfr. Part Number
FR100
Bearing Type
Ball
Motor Enclosure
Totally Enclosed
Brand
FANTECH
Mounting Position
Horizontal or Vertical
Housing Diameter
9-1/2 in.
Number of Speeds
1
Housing Material
Thermoplastic
Package Quantity
1
Item
Inline Centrifugal Duct Fan
Shipping Weight
5.15 lb.
Length
9-5/8 in.
General
Airflow @ 0.000 in SP
151 cfm
Motor IP Rating
IP44
Airflow @ 0.000 in SP - Range
0 to 249 cfm
Motor Output Power
20 W
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Motor Speed
2,900 RPM
For Fan Type
Centrifugal Duct Fan
Nameplate Voltage
120V AC
Green Certification/Other Recognition
ENERGY STAR® Certified
Nominal Voltage
120V AC
Green Environmental
Product Contributes To Reducing Energy Consumption
Overall Dimensions H x W
10 5/8 in x 10 in
High-Efficiency Motor
No
Speed Control Included
No
Includes
Mounting Bracket
Speed Controllable
Yes
Maximum Inlet Air Temperature
140 Degrees F

Product Description

This FANTECH inline centrifugal duct fan is prewired and has a lower sound level than comparable surface-mounted fans. Model comes with an external wiring box with waterproof gasket and a mounting bracket to help ease fan installation. Fan is suitable for outdoor/wet location applications and can accept speed controls, designer grilles, and dampers (sold separately).
