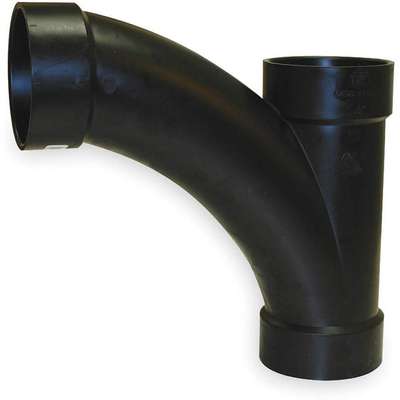

Combination Wye & 45° Elbow: 1 1/2 in x 1 1/2 in x 1 1/2 in Fitting Pipe Size, Schedule 40, Black

Hover over image to magnify
Wye With 45 Deg Bend,1-1/2 In
PI_Asset_1982905
PI_Asset_1987366
PI_Asset_1990396
PI_Asset_1992441
Wye With 45 Deg Bend,1-1/2 In
PI_Asset_1982905
PI_Asset_1987366
PI_Asset_1990396
PI_Asset_1992441

#916948-3 | Pkg Qty: 1

$9.03 pkg | $9.03 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
ABS
Mfr. Part Number
1WHW7
Brand
APPROVED SUPPLIER
Package Quantity
1
Class
Schedule 40
Pipe Size
1-1/2 in.
Connection Type
Hub x Hub x Hub
Shipping Weight
.35 lb.
Item
Wye with 45° Bend
General
Fitting Pipe Size
1 1/2 in x 1 1/2 in x 1 1/2 in
Fitting Side C Gender
Female
Fitting Side A Gender
Female
Fitting Side C Nominal Pipe Size
1 1/2 in
Fitting Side A Nominal Pipe Size
1 1/2 in
Fitting Side C Outside Diameter
1 7/8 in
Fitting Side A Outside Diameter
1 7/8 in
Fitting Side C Type
Socket
Fitting Side A Type
Socket
For Pipe Outside Diameter
1 7/8 in
Fitting Side B Gender
Female
For Pipe Schedule
40
Fitting Side B Nominal Pipe Size
1 1/2 in
Low Lead Compliance Level
Not Compliant
Fitting Side B Outside Diameter
1 7/8 in
Standards
Cell Class 32222 As Defined In ASTM D3965
Fitting Side B Type
Socket
Temp. Range
-20 Degrees to 140 Degrees F

Product Description

Socket x socket fittings, also called slip or hub fittings, include socket ends on all fitting connection ends. The socket ends fit over the end of an ABS (acrylonitrile butadiene styrene) pipe and require glue or adhesive to secure the connection.

Drain, waste, and vent (DWV) systems convey effluent streams, such as black water or gray water waste. ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. ABS DWV fittings connect the same or different sizes of ABS pipe and use gravity to divert, divide, or return the flow of water and waste through the pipeline. DWV pipe and fittings are not for use in pressure applications. The smooth interior walls of ABS pipe and fittings resist physical impact, chemical corrosion, and scaling.

Item Barcode
9169483
Wye With 45 Deg Bend,1-1/2 In
 NameItemDescription
Grainger DropshipGrainger Dropship1WHW7Wye with 45 Deg Bend,1-1/
UNSPSC CODESUNSPSC CODES40175210
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Wye with 45 Deg Bend,1-1/
