LITTLE GIANT

1/50 HP Condensate Removal Pump, Medium Reservoir, 120VAC, 3/8" Barb Discharge Size

Hover over image to magnify
Pump,Condensate,115 V
PI_Asset_969136
PI_Asset_969137
PI_Asset_969138
PI_Asset_969139
Pump,Condensate,115 V
PI_Asset_969136
PI_Asset_969137
PI_Asset_969138
PI_Asset_969139

#916922-1 | Pkg Qty: 1

$99.60 pkg | $99.60 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps
1.0 A
Maximum Temperature (Deg. F)
140
Brand
LITTLE GIANT
Mfr. Part Number
554405
Cord Length
6 ft.
Package Quantity
1
Discharge
3/8 in. Barb
Pump Type
Vertical
Float Material
Polypropylene
Reservoir Capacity
1/2 gal.
GPH of Water @ 1 Ft. of Head
65
Shaft Material
Stainless Steel
GPH of Water @ 12 Ft. of Head
18
Shipping Weight
4.25 lb.
GPH of Water @ 5 Ft. of Head
50
Shut-Off
15 ft.
GPH of Water @ 9 Ft. of Head
30
Tank Size
1/2 Gal.
Height
7 in.
Type
Vertical
Horsepower
1/50
Voltage
120 VAC
Item
Condensate Removal Pump
Watts
60 W
Length
10-1/2 in.
Width
5 in.
Maximum Pressure
6.5 psi
General
Body Gasket Material
Stainless Steel
Maximum Flow Rate @ 1 Feet of Head
1.1 gpm
Compatible Discharge Pipe Size
3/8 in
Maximum Flow Rate @ 10 Feet of Head
0.4 gpm
Compatible Intake Pipe Size
1 1/8 in
Maximum Flow Rate @ 15 Feet of Head
0 gpm
Compatible Media Type
Water
Maximum Flow Rate @ 5 Feet of Head
0.8 gpm
Discharge Connection
3/8 in Barbed
Nameplate Voltage
115V AC
Discharge Connection Style
Barbed
Number of Intakes
3
Electrical Connection Type
Cord with Plug
Plenum Rated
No
For Use With Potable Systems
No
Pump Activation Type
Float Switch
Includes
Models Equipped With Overflow Detection Switch
Pump Housing Material
ABS Plastic
Intake Connection
1 1/8 in Open
Series Family
VCMA
Intake Connection Style
Open
Shut Off Level
1.1 in
Manufacturer Warranty Length
1 yr
Turn On Level
1.9 in
Maximum Feet of Head
15 ft

Product Description

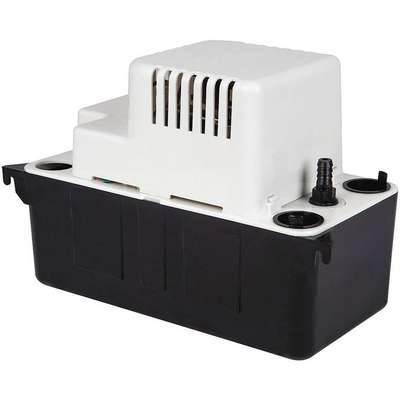

This Little Giant® condensate removal pump is for use where gravity drainage is not available to remove condensation in high-efficiency gas furnaces, condensing boilers, air conditioning units, and other no-gravity applications. Unit has a high-impact polymer pump base, stainless steel shaft, and ABS plastic tank cover and switch housing. With fan-cooled motor and integral sump tank.
