CHICAGO PNEUMATIC

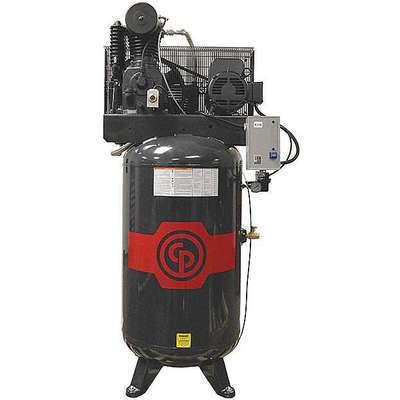

1 Phase - Electrical Vertical 7.50HP - Air Compressor Stationary Air Compressor, 80 gal., 23.0

Hover over image to magnify
Electric  Air Compressor, 2
Electric  Air Compressor, 2
1 Phase - Electrical Vertical 7.50HP - Air Compressor Stationary Air Compressor, 80 gal., 23.0 Video

#916784-2 | Pkg Qty: 1

$3,966.51 pkg | $3,966.51 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Lubrication Type
Splash Lubricated
Air Consumption
scfm
Maximum Pressure
175 psi
Amperage
32 A
Mfr. Part Number
RCP-C7581V
Brand
CHICAGO PNEUMATIC
Number of Stages
2
Compressor Package Type
Fully Packaged
Overall Height
71-1/2 in.
Compressor Type
Tank Mounted
Overall Length
35-5/16 in.
Control
Pressure Switch
Overall Width
24 in.
Cylinder Material
Cast Iron
Package Quantity
1
Enclosure
NEMA 1
Phase
1
Finish
Powder Coated
Pump RPM
900
Free Air CFM @ Max Pressure
23
Shipping Weight
620 lb.
Horsepower
7-1/2
Tank Size
80 gal.
Hz
60
Tank Style
Vertical
Input Voltage
208 to 240 VAC
Tank Type
Vertical
Item
Electric Air Compressor
Voltage
208-230
General
ASME Tank
Yes
Max. Pressure - Air Compressor
175 psi
Air Tank Size
80 gal
Number of Stages - Air Compressor
2
Air Tank Style
Vertical
Off Pressure Switch Setting
175 psi
Compressor Voltage
208-230V AC
On Pressure Switch Setting
145 psi
Free Air CFM @ Max. Pressure
23
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
23.0
Output Power
7.5 hp
Free Air Flow Rate @ Max Pressure
23 cfm
Phase - Electrical
1
Free Air Flow Rate @ Maximum Pressure
23 cfm
Pump Oil Capacity
41.9 fl oz
HP
7-1/2
Sound Level Range
Standard (70 dBA or more)
HP - Air Compressor
7.5 hp
Standards
ASME
Includes
Air Cooled Aftercooler, Automatic Electric Drain Valve, Initial Fill of Compressor Oil, Low Oil Protection Switch, Motor Starter, Oil Sight Glass, Precision Bearing, Pressure Gauge, Pressure Safety Valve, Vibration Isolators
Style - Air Compressor
Simplex
Input Voltage - Air Compressor
208 to 240V AC
Tank Size - Air Compressor
80 gal
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Vertical
Max Operating Pressure
175 psi
dBA @ 3 Feet
82

Product Description

The unit has a cast iron pump for durability, and a tank which minimizes the number of starts per hour.
