JANCY

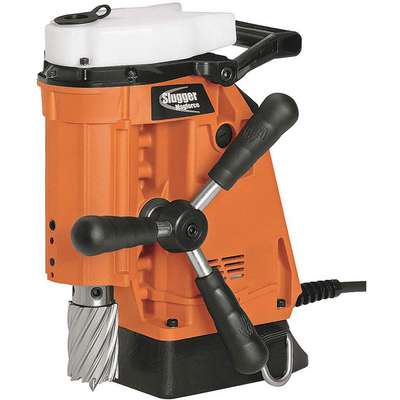

Jancy Magnetic Drill Press, 120VAC, 1-5/8" Capacity Steel, 450 No Load RPM

Hover over image to magnify
Magnetic Drill Press Kit,395
Magnetic Drill Press Kit,395

#916766-2 | Pkg Qty: 1

$1,653.90 pkg | $1,653.90 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps @ 120 V
10.2
Item
Magnetic Drill Press
Brand
JANCY
Mfr. Part Number
JHM MAGFORCE
Characteristics
Magnet Circuitry That Prevents The Drill Motor From Starting On Non-Ferrous Material Or Ferrous Material That Is TooThin To Allow Proper Magnetic Adhesion And Will Also Shut The Motor Down If The Magnet Should Break Free From The Work
Package Quantity
1
Corded/Cordless
Corded
Shipping Weight
40.24 lb.
General
Coolant System
Yes
Magnetic Force
9,000 N
Drill Point Pressure
2,000 lb
Maximum Core Bit Compatibility
1 5/8 in
Drill Travel
2 9/16 in
Maximum Spindle Speed
450 RPM
Drilling Capacity in Aluminum
1 5/8 in
Maximum Working Speed
450 RPM
Drilling Capacity in Masonry
1 5/8 in
Minimum Spindle Speed
280 RPM
Drilling Capacity in Stainless Steel
1 5/8 in
Minimum Working Speed
450 RPM
Drilling Capacity in Steel
1 5/8 in
Power Down Feed Included
No
Features
Magnet Circuitry Prevents Drill Motor from Starting on Non-Ferrous Material or Ferrous Material that is TooThin to Allow Proper Magnetic Adhesion and will also Shut Motor Down if Magnet Should Break Free from the Work
Spindle Speed
280 RPM - 450 RPM
Includes
Cutter Shield, Safety Strap, Storage Case
Tapping Compatible
No
Magnet Type
Electro
Var. Speed
Variable Speed

Product Description

Magnetic Drill Press, Magnet Type Electro, Variable Speed Yes, Drilling Capacity in Steel 1 5/8 in, Drill Travel 2 9/16 in, Maximum Spindle Speed 450 RPM, Minimum Spindle Speed 280 RPM, Current 5 A, Voltage 120V AC, Phase Single-Phase, Base Type Magnetic, Spindle Taper 3/4 in, Drill Point Pressure 2,000 lb, Power Down Feed Included No, Coolant System Yes, Tool Style Compact, Tapping Compatible No, Cord Length 12.5 ft
