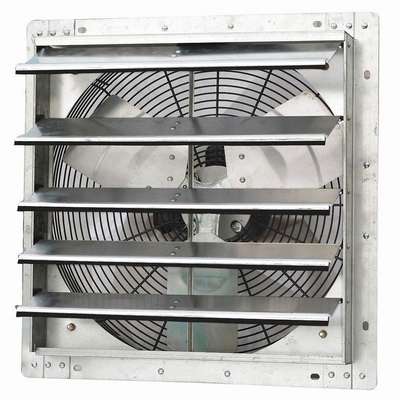

Dayton 1/15 HP 18"-Dia. 115VACV Shutter Mount Exhaust Fan, 19" Square Opening Required

Hover over image to magnify
Exhaust Fan,18 In,115V,1/15hp,
Exhaust Fan,18 In,115V,1/15hp,

#916740-8 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Shutter Mount Exhaust Fan,
$210.44 pkg | $210.44 ea
Item: 939281-3
Pkg Qty: 1

Technical Specifications

Key Specifications
Agency Compliance
UL Listed for US and Canada
Motor HP
1/15
Bearing Type
Ball
Motor Type
PSC
Blade Diameter
18 in.
Number of Blades
3
Blade Material
Stamped Aluminum
Package Quantity
1
Brand
DAYTON
Phase
1
Height
21-1/8 in.
Shipping Weight
22 lb.
Item
Shutter Mount Exhaust Fan
Voltage
115 VAC
Mfr. Part Number
1HLA4
Width
21-1/8 in.
Motor Enclosure
Totally Enclosed Air-Over
General
Exhaust Airflow @ 0.000 in SP
1,736 cfm
Maximum Noise Level
7.4 sones
Exhaust Airflow @ 0.125 in SP
1,108 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Fan Style
Shutter-Mounted
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Fan Voltage
115V AC
Motor Horsepower
1/15 hp
For Cut-Out Width
19 in
Nameplate Voltage
115V AC
Includes
Shutter
Noise Level @ 0.000 in SP @ 5 ft
7.4 sones
Includes Motor
Yes
Nominal Voltage
115V AC
Maximum Ambient Operating Temperature
104 Degrees F
Ventilation Type
Exhaust
Maximum Exhaust Airflow @ 0.000 in SP
0 to 2000 cfm

Product Description

Dayton utility exhaust fans are designed for general purpose exhaust applications and may be used in stores, offices, factories, shops, farm buildings, greenhouses, etc. The efficient, easy-to-install exhaust fans come with automatic shutters. Shutter flanges have eight pre-punched 1/4 x 1/2” slotted mounting holes for ease of installation. To resist corrosion, fan guards have a charcoal metallic finish. Wire guards comply with OSHA Federal 1/2” max. opening requirement, and the fan is shipped completely assembled.
