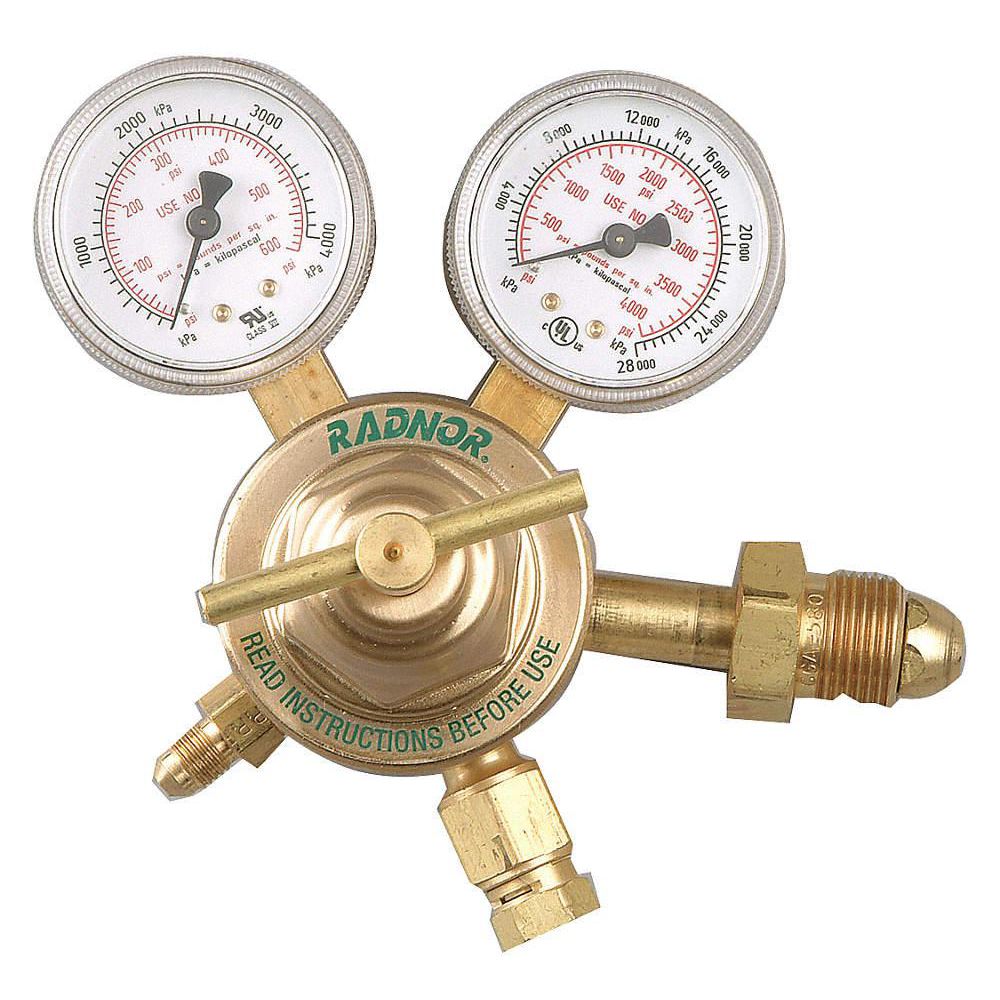

Radnor TPR250-500-580 Series Purge Regulator, 10 to 500 psi, Nitrogen
Hover over image to magnify
#916729-3 | Pkg Qty: 1
$290.27 pkg | $290.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Item
Gas Regulator
Brand
RADNOR
Mfr. Part Number
RAD64003044
CGA Connection Inlet
CGA580
Outlet Connection
1/4 in. 37 deg. Flared Tube
Cylinder Gas
Nitrogen
Package Quantity
1
Delivery Pressure Range
10 to 500 psi
Regulator Supply Type
Cylinder
Gas Service
Nitrogen
Series
TPR250-500-580
Gauge Size
2 in.
Shipping Weight
3.15 lb.
Inlet Connection
CGA-580
Stages
Single Stage
General
CGA Number
CGA 580
Mounting Type
Cylinder
Compatible Gas Type
Nitrogen
Number of Stages
Single Stage
Gauge Diameter
2 in
Outlet Connection Size
1/4 in
Inlet Connection Gender
Male
Outlet Connection Type
37° Flared Tube
Inlet Connection Size
0.965"-14
Outlet Pressure (Maximum)
500 psig
Inlet Connection Type
NGO
Outlet Pressure (Minimum)
10 psig
Inlet Thread Direction
Right Hand
Regulator Application
General Purpose
Product Description
Purges the System by Running Nitrogen to Prevent Oxidation on the Inside of the Tube While Brazing, Stem-Type Seat Assembly, Pressure Tests With Nitrogen to Check for Leaks
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Purge Regulator,Nitrogen,Cga-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 31UR51 | Purge Regulator |
 | UNSPSC CODES | 40142201 | |
 | VMRS (ATA) CODES | 053-006-009 | Purge Regulator |
