SHRINK-KON

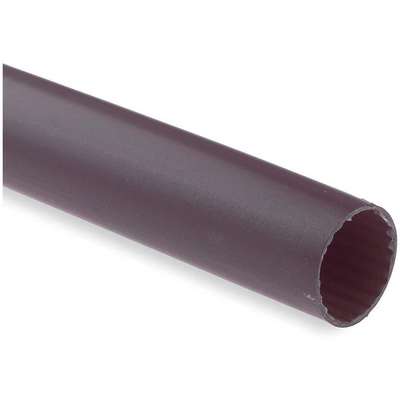

Shrink-Kon 4 ft. Heavy Wall Heat Shrink Tubing Polyolefin, Shrink Ratio 3:1
Hover over image to magnify
#916685-1 | Pkg Qty: 5
$200.00 pkg | $40.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SHRINK-KON
Shipping Weight
4.1 lb.
Cable Range
2/0 to 350kcmil
Shrink Ratio
1899-12-31 03:01:00
Color Family
Black
Shrink Temperature
248F
Dielectric Strength
600 V
Shrink Tubing Adhesive Lined
Yes
Flame Retardant
No
Shrink Tubing Inside Diameter Before Shrinking
1.500 in.
Heat Shrink Tubing Shrink Ratio
3:1 Shrink Ratio
Shrink Tubing Length
4 ft.
Inside Diameter After Shrinking
0.470 in.
Shrink Tubing Material
Polyolefin
Inside Diameter Before Shrinking
1.500 in.
Shrink Tubing Type
Heat Shrink Tubing
Inside Diameter Expanded Pre-Shrink
1-1/2 in.
Shrink Tubing Usable Temperature Range
-67 to 230F
Item
Heat Shrink Tubing
Temperature Range
-67 deg. F to 230 deg. F
Length
4 ft.
Tube Material
Polyolefin
Material
Cross-Linked Polyolefin with Adhesive
Use Shrink Tubing With Wire Size
2/0 AWG to 350 kcmil
Material of Construction
Polyolefin
Wall Thickness After Shrinking
0.160 in.
Maximum Voltage
600 V
Wall Type
Heavy Wall
Mfr. Part Number
HS40-400-4
Width
1-1/2 in.
Minimum Shrink Temperature
248F
Wire Range
2/0 to 350 kcmil
Package Quantity
5
General
Adhesive Lined
Yes
Shrink Tubing Properties
High Heat Resistant
Features
Adhesive Lined
Shrink Tubing Wall Thickness After Shrinking
0.16 in
I.D. After Shrinking
0.47 in
Standards
Meets UL 224, 120░C; CSA 22.2
I.D. Before Shrinking
1.5 in
Tubing Wall Type
Heavy Wall
Package Style
Individual Pieces
Use With Wire Size
2/0 AWG to 350 MCM
Shrink Tubing I.D. Before Shrinking
1.5 in
Product Description
Split-resistant and adhesive-lined heat shrink tubing has a heavy wall that can resist splitting and abrasion. It's typically used in electrical applications. This tubing covers plugs, connectors, irregular shapes, and wire and is heated to shrink the tubing and seal the adhesive.
Expertly Selected Product Pairings
Item Barcode
Shrink Tubing,1.5in Id,Black,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3KH69 | Shrink Tubing,1.5in |
 | UNSPSC CODES | 39121723 | |
 | VMRS (ATA) CODES | 053-006-009 | Shrink Tubing,1.5in |
