WESTWARD

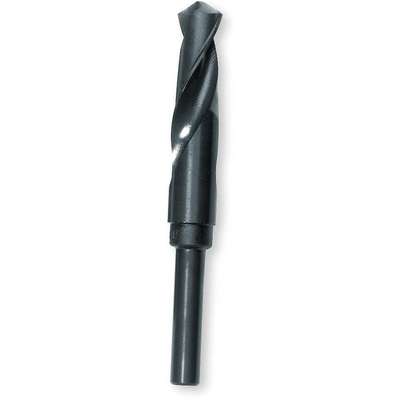

Westward Reduced Shank Drill Bit, 59/64", High Speed Steel, Black Oxide, List Number Non-Listed
Hover over image to magnify
#916674-5 | Pkg Qty: 1
$56.27 pkg | $56.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WESTWARD
Helix Angle
32 deg.
Coolant Through
Non-Coolant Through
Item
Reduced Shank Drill Bit
Cutting Direction
Right
Maximum Drilling Depth
2-1/2 in.
Decimal Equivalent
0.9219
Mfr. Part Number
4UM85
Depth x Diameter Ratio
5xD
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Finish
Black Oxide
Overall Length
6 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Point Type
Conventional Point
Drill Bit Size
59/64 in.
Shank Diameter
1/2 in.
Flute Length
3-1/8 in.
Shank Length
2-7/8 in.
Flute Type
Spiral
Shank Type
Round
Grade
General Purpose
Shipping Weight
.61 lb.
General
Application
For Alloy And Carbon Steels, Aluminum, Brass, Bronze, Cast Iron, Nickel based Alloys, Plastic And Wood
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
P
Depth:Dia. Ratio
5xD
Secondary Material Application
Non Ferrous Material
Drill Bit Grouping
Individual
Secondary Material Application ISO Code
M
Drill Bit Point Type
Conventional Point
Shank Dia.
1/2 in
Finish - Machining
Black Oxide
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Silver & Deming Drill
Yes
Material Grade - Machining
General Purpose
Product Description
High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt drill bits. Also known as Silver and Deming drill bits, these reduced-shank drill bits have a 1/2" shank and a drill diameter that is greater than 1/2". They can create larger holes than standard drill bits that have a 1/2" shank.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Documents
Item Barcode
Silver/Deming Drill,59/64,Hss,
