AMERICAN STANDARD

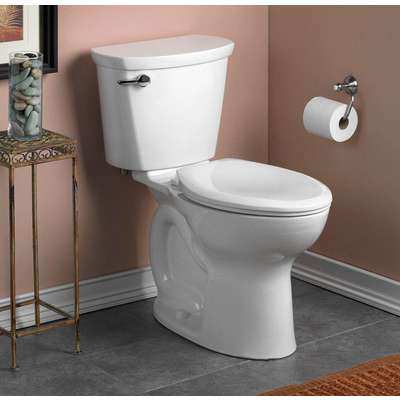

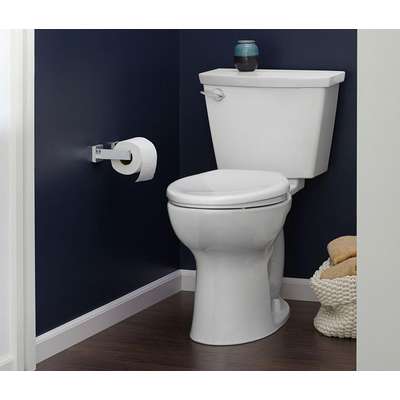

Toilet Bowl: American Std Cadet(R) PRO(TM), 1.28/1.6 Gallons per Flush, Elongated Bowl, Whites, Top

Hover over image to magnify
Toilet Bowl,Floor,Elongated,16-
PI_Asset_970880
PI_Asset_970881
PI_Asset_970882
PI_Asset_970883
Toilet Bowl,Floor,Elongated,16-
PI_Asset_970880
PI_Asset_970881
PI_Asset_970882
PI_Asset_970883

#916648-3 | Pkg Qty: 1

$225.43 pkg | $225.43 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bowl Depth
29-1/8 in.
Item
Toilet Bowl
Bowl Height
16-1/2 in.
Material
Vitreous China with EverClean
Bowl Shape
Elongated
Mfr. Part Number
3517A101.020
Bowl Width
14 in.
Mounting
Floor
Brand
AMERICAN STANDARD
Package Quantity
1
Color Family
White
Shipping Weight
63 lb.
Depth
30-1/4 in.
Width
17-1/4 in.
Height
16-1/2 in.
General
Brand and Series
American Standard Cadet(R) PRO(TM)
Spud Connection Size
3/8 in
Features
Siphon Jet, MaP Score of 1,000 Grams, Everclean® Surface Inhibits the Growth of Stain and Odor Causing Bacteria, Mold & Mildew, Right Height™ Feature for Accessible Applications & PowerWash® Rim Scrubs Bowl with Each Flush, Fully Glazed Trapway
Spud Location
Top
Flushing Method
Gravity Fed
Stain Resistant
Yes
For Use With
Gravity Fed Tank
Standards
ASME A112.19.2 2008/ CSA B45.1 08 , EPA Water Sense , ADA , ANSI 117.2
Gallons per Flush
1.28, 1.6
Toilet Bowl Material
Vitreous China
Green Certification/Other Recognition
WaterSense Certified and California Energy Commission (CEC) Certified
Toilet Bowl Shape
Elongated
Green Environmental
Toilet Uses 1.28 gpf or Less
Toilet Mounting Style
Floor
Includes
Bolt Covers
Toilet Product Type
Toilet Bowl
Includes Bowl
Yes
Trapway Dia.
2 1/8 in
Rim Height
16 1/2 in
Water Surface Area
9 in x 8 in
Rough-In
12 in

Product Description

Floor-mount gravity toilet bowls pair with a gravity tank to form a two-piece toilet. These fixtures fasten to the floor for stability and have mounting holes for attaching a tank. The separate bowl-and-tank design allows components to be replaced individually if they break and eases handling during installation and maintenance.
