DAYTON

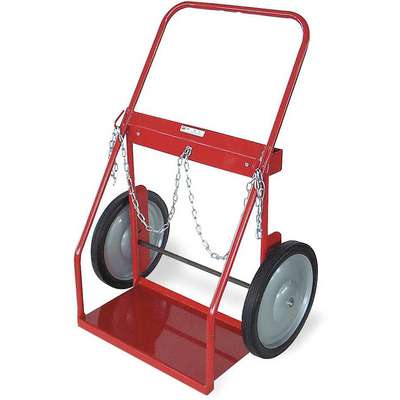

Dayton Welding Cylinder Truck,Continuous Frame Flow-Back, 500 lb., Cylinder Capacity 2, 43-1/2" H X 32-3/4
#916616 | Pkg Qty: 1
$264.27 pkg | $264.27 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Base Plate Dimensions
13 x 24 in.
Mfr. Part Number
5Z082
Brand
DAYTON
Overall Depth
22 in.
Color Family
Red
Overall Height
43-1/2 in.
Construction
Steel
Overall Width
32-3/4 in.
Cylinder Capacity
2
Package Quantity
1
Finish
Powder Coated
Shipping Weight
64 lb.
Hand Truck Handle Type
Continuous Frame Flow-Back
Type
Standard
Hand Trucks Group
Cylinder Hand Trucks
Wheel Bearings
Ball
Item
Welding Cylinder Truck
Wheel Diameter
16 in.
Load Capacity
500 lb.
Wheel Material
Steel Hub
Material
Steel
Wheel Type
Semi-Pneumatic
Maximum Tank Diameter Acetylene
13-1/2 in.
Wheel Width
1-3/4 in.
Maximum Tank Diameter Oxygen
9-1/4 in.
General
Assembled
Yes
Includes Lift Ring
Without Lift Ring
Axle-Mounted Wheel Bearings
Ball Bearing
Includes Stair Climber
Without Stair Climber
Axle-Mounted Wheel Dia.
16 in
Max. Tank Dia. Acetylene
13 1/2 in
Axle-Mounted Wheel Type
Semipneumatic
Max. Tank Dia. Oxygen
9 1/4 in
Axle-Mounted Wheel Type/Material
Semipneumatic Rubber
Non-Marking Axle-Mounted Wheels
No
Axle-Mounted Wheel Width
1 3/4 in
Nose Plate Depth
12 1/2 in
Axle-Mounted Wheel/Tread Material
Rubber
Nose Plate Material
Steel
Brake Type
No Caster Brake
Nose Plate Profile
Standard
Caster/Wheel Configuration
(2) Axle-Mounted
Nose Plate Thickness
1/16 in
Caster/Wheel Mounting Location
2-Wheel
Nose Plate Type
Solid Straight
Compatible with Product Type
Oxygen and Acetylene Cylinders
Nose Plate Width
24 in
Cylinder Orientation
Side by Side
Nose Plate WxD
12 1/2 in x 24 in
For Maximum Container Diameter
13 in
Overall Height - Cylinder Lowered
44 7/8 in
For Maximum Cylinder Diameter
13 in
Overall HxWxD
43 1/2 in x 32 1/2 in x 22 in
For Surface Type
Concrete
Securing Mechanism
Chain
Hub Position
Center Mount
Securing Mechanism Height
27 in
Includes Firewall
No
Tool Tray Height
28 1/2 in
Includes Foot Assist
Without Foot Assist
Tool Tray Width
5 in
Includes Lever Pushoff
Without Lever Pushoff
Product Description
These hand trucks can transport oxygen and acetylene gas cylinders used in welding applications. They can also be used to store the cylinders for short periods of time (less than 24 hours). They may have features such as compartments, trays, or winders for storing welding equipment or hoses as well as brackets that secure specific sizes of welding gas cylinders.
