ZOELLER

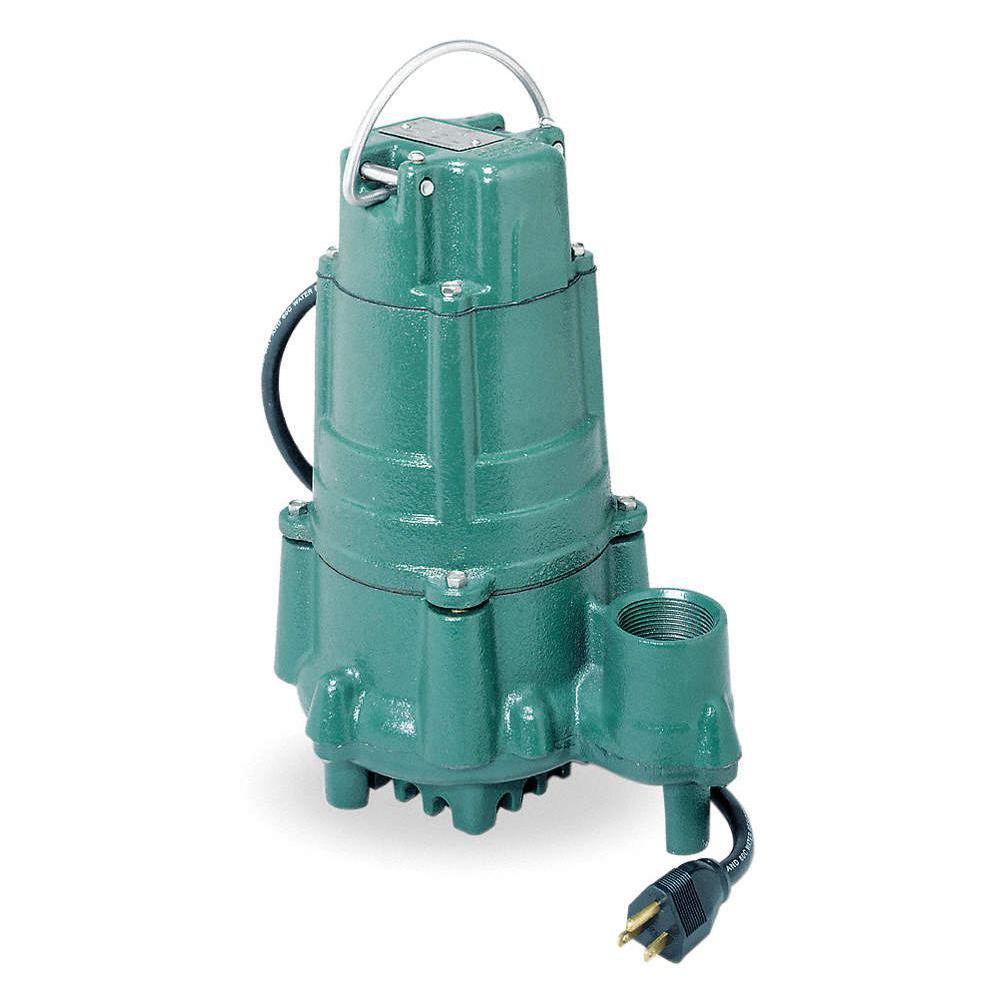

1 HP Submersible Sump Pump, No Switch Included Switch Type, Cast Iron Base Material

Hover over image to magnify
Sump Pump,1 Hp,1-1/2In Npt,
PI_Asset_971387
Sump Pump,1 Hp,1-1/2In Npt,
PI_Asset_971387
1 HP Submersible Sump Pump, No Switch Included Switch Type, Cast Iron Base Material Video

#916532-7 | Pkg Qty: 1

$766.33 pkg | $766.33 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Alarm
No
Maximum Head
50 ft.
Alarm Included
No
Maximum Liquid Temperature
130°F
Amps
12 A
Maximum Temperature (Deg. F)
130
Base Material
Cast Iron
Mechanical Seal
CRB/CMC
Brand
ZOELLER
Mfr. Part Number
N140
Cord Length
10-3/16 in.
Mfr. Warranty Length
1 yr.
Diameter
10-1/8 in.
Motor RPM
3450
Discharge NPT
1-1/2 in. F
NEC Cord Designation
SOW
GPM of Water @ 10 Ft. of Head
80
Package Quantity
1
GPM of Water @ 15 Ft. of Head
73
Pump Body Material
Cast Iron
GPM of Water @ 20 Ft. of Head
66
Pump HP
1
GPM of Water @ 25 Ft. of Head
59
Pump Type
Manual
GPM of Water @ 30 Ft. of Head
50
RPM
3450
GPM of Water @ 40 Ft. of Head
32
Shaft Seal
Carbon/Ceramic
GPM of Water @ 5 Ft. of Head
86
Shaft Seal Material
Carbon, Ceramic
Gauge/Conductor
16/3
Shipping Weight
47.15 lb.
Height
12-5/8 in.
Sump Pump Item
Submersible Sump Pump
Horsepower
1
Switch Type
None
Housing
Cast Iron
Thermal Protection
Yes
Housing Material
Cast Iron
Top Material
Cast Iron
Hz
60 HZ
Type
Manual
Impeller Material
Polypropylene
Voltage
120 VAC
Item
Submersible Sump Pump
Warranty
3 yr.
Maximum Diameter Solids
1/2 in.
General
Body Dia.
10 1/8 in
HP
1
Discharge Dia.
1 1/2 in
Min. Sump Pit Dia.
18 in
Discharge Gender
Female
Nominal Voltage
110 V AC
Discharge Standard
NPT
Rated Voltage
115V AC
Flow Rate @ 10 Ft. of Head
80 gpm
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 15 Ft. of Head
73 gpm
Switch Actuation
No Switch Included
Flow Rate @ 20 Ft. of Head
66 gpm
Switch Electrical Connection
No Switch Included
Flow Rate @ 5 Ft. of Head
86 gpm

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.

Expertly Selected Product Pairings

Check Valve 1 1/2"
$23.08 pkg | $23.08 ea
Item: 910956-1 | Pkg Qty: 1
Sealant,Thread
$20.12 pkg | $20.12 ea
Item: 913406-5 | Pkg Qty: 1
Nipple,Hose,1 1/2 In
$4.23 pkg | $4.23 ea
Item: 914711-9 | Pkg Qty: 1
Check Valve,Tpr,1-1/4 In. Or 1-
$23.34 pkg | $23.34 ea
Item: 915562 | Pkg Qty: 1

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Zoeller fm0447 Installation Instructions
