DAYTON

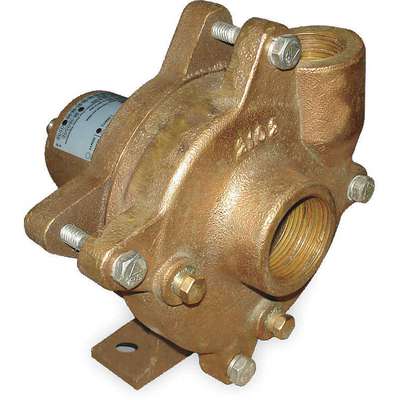

Pedestal Pump: Sized for 1 1/2 hp, 67 ft Max Ft of Head, 5/8 in Shaft Out Dia, BR.

Hover over image to magnify
Pedestal Pump, Centrifugal,Hp
Pedestal Pump, Centrifugal,Hp

#916350-6 | Pkg Qty: 1

$549.85 pkg | $549.85 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearing Type
Ball
Length
6-3/4 in.
Best Efficiency GPM @ Head
72 @ 44 ft.
Maximum Case Pressure
200 psi
Brand
DAYTON
Maximum Fluid Viscosity
100 SSU
Drain Plug
Easily Accessible
Maximum Pressure
29 psi
Duty
Continuous
Maximum Specific Gravity
1
GPM of Water @ 10 Ft. of Head
115
Mfr. Part Number
2ZWY5
GPM of Water @ 15 Ft. of Head
110
Mfr. Warranty Length
1 yr.
GPM of Water @ 20 Ft. of Head
104
Outlet
1-1/4 in.
GPM of Water @ 30 Ft. of Head
94
Package Quantity
1
GPM of Water @ 40 Ft. of Head
81
Port Rotation
4 Position
GPM of Water @ 50 Ft. of Head
64
Screw Material
Zinc Plated
GPM of Water @ 60 Ft. of Head
40
Seal Application
Long Life When Not Run Dry or Pumping Abrasives
HP Required
1-1/2
Seal Material
Buna-N
Height
6-3/4 in.
Seal Type
Mechanical Carbon on Ceramic
Housing Material
Bronze
Shaft Material
Stainless Steel
Impeller Material
Bronze
Shipping Weight
18.4 lb.
Impeller Type
Semi Open
Type
Centrifugal
Inlet
1-1/2 in.
Volute Material
Bronze
Inlet Pressure
200 psi
Wetted Materials
Bronze, Brass, Buna-N, Carbon, Ceramic, SS
Item
Pedestal Pump
Width
7-1/4 in.
General
Application
High Flow at Low Head Pressure
Includes
Complete Pump with Mounting Base. No Motor or Drive Couplers. Includes Manual
Best Efficiency Flow
72 gpm
Intake Type
NPT
Best Efficiency Head
44 ft
Intake and Discharge Size
1 1/2 in , 1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Maximum Feet of Head
67 ft
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Maximum Media Temperature
200 Degrees F
Discharge Type
NPT
Minimum Media Temperature
40 Degrees F
Feet of Head (Minimum)
10 ft
NPSHr
200 psi
Flow Rate @ 10 ft of Head (Maximum)
115 gpm
Priming
Manual
Flow Rate @ 15 ft of Head (Maximum)
110 gpm
Pump Housing Material
Bronze
Flow Rate @ 20 ft of Head (Maximum)
104 gpm
Pumping Application
Aggressive Liquid Applications, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Purpose Pumping, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Transfer of Liquids, Utility, Water Circulation
Flow Rate @ 30 ft of Head (Maximum)
94 gpm
Shaft Outside Diameter
5/8 in
Flow Rate @ 40 ft of Head (Maximum)
81 gpm
Sized for Horsepower
1 1/2 hp
Flow Rate @ 50 ft of Head (Maximum)
64 gpm
Specific Gravity (Maximum)
1
For Use With
Nonflammable and Nonabrasive Liquids
System Pressure (Maximum)
29 psi
For Use With Potable Systems
No
Wetted Material
Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
Impeller Design
Semi-Open

Product Description

Dayton unit was made to pump continuously, producing high flow rates under low-head conditions. Designed for continuous low pressure circulation and transfer of liquids, utility , boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with component materials where no suction lift or no self priming is required.
