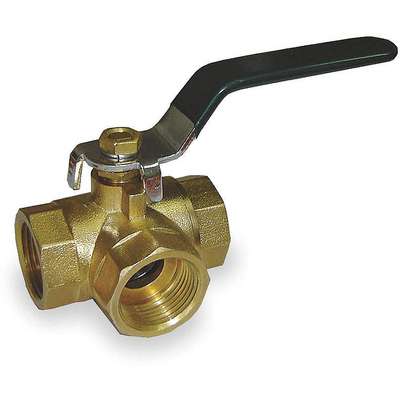

Brass FNPT x FNPT x FNPT Ball Valve, Lever, 3/4" Pipe Size
Hover over image to magnify
#916347-9 | Pkg Qty: 1
$41.64 pkg | $41.64 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Valve Group
Manual
Maximum Pressure
600 psi CWP
Ball Valve Item
Ball Valve
Mfr. Part Number
1PZA2
Body Material
Brass
Overall Length
2.37 in.
Body Style
3-Way
Package Quantity
1
Brand
APPROVED SUPPLIER
Port
Standard
Connection Type
FNPT x FNPT x FNPT
Seat Material
PTFE
For Pipe Size
3/4 in.
Shipping Weight
.75 lb.
General Connection Type
Female NPT
Stem Material
Brass
Handle Material
Steel with Vinyl Grip
Stem Type
Blowout Proof
Handle Type
Lever
Temperature Range (Deg. F)
-40 to 350 deg. F
Item
Ball Valve
Valve Style
2-Piece
General
Ball Valve Product Group
Manual
Valve Structure
2-Piece
Valve Basic Body Material
Brass
Product Description
3-Way Brass Ball Valves
- Max. pressure: 600 psi WOG Max. steam pressure: 100 psi WSP temperature range: -4° to 350°
- 3-way diversion valves with L flow pattern are ideal for tank selection and help simplify fluid transfers. The middle port is common and can divert to the left or right port. Reposition the handle for additional flow patterns. 2-pc., standard-port with PTFE seats, brass body, chrome-plated brass ball and stem, and a steel lever handle with vinyl grip. Blowoutproof stem.
