RADNOR

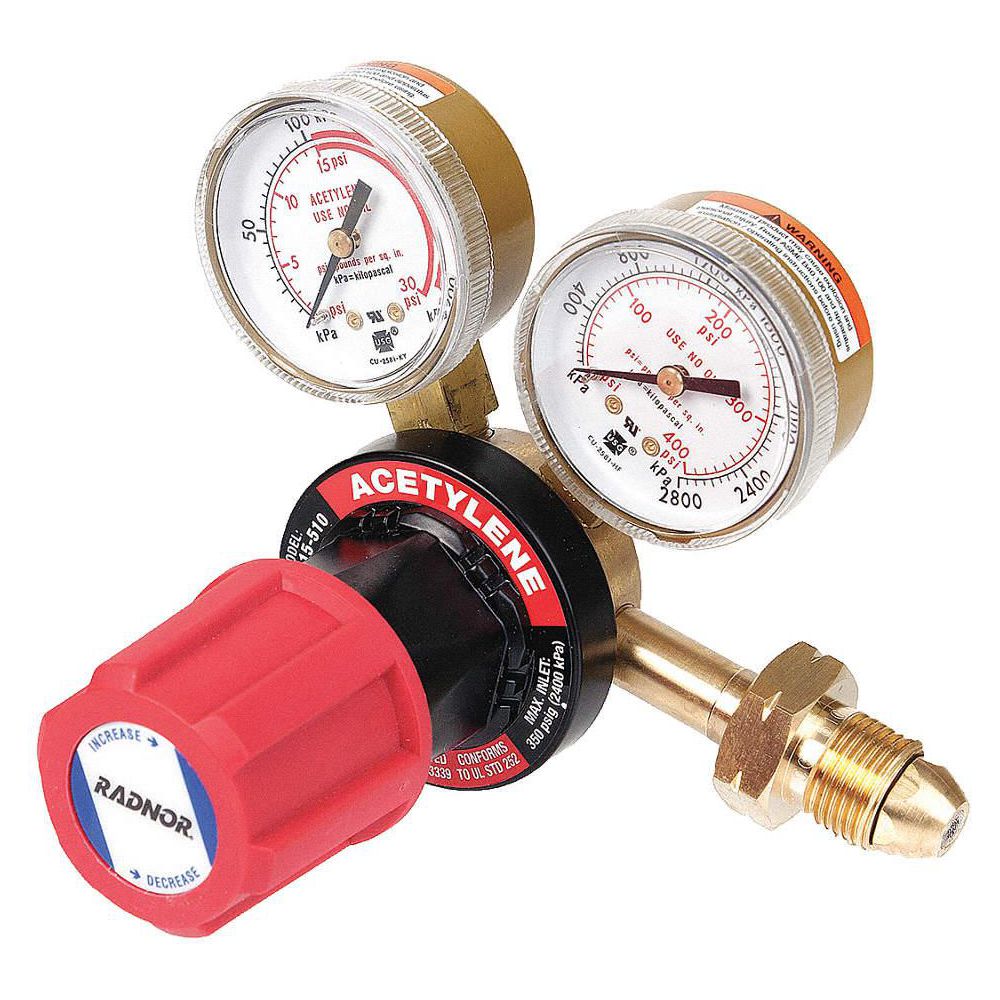

Radnor 250-15-510 Series Gas Regulator, 2 to 15 psi, Acetylene
Hover over image to magnify
#916347-8 | Pkg Qty: 1
$239.83 pkg | $239.83 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Mfr. Part Number
RAD64003030
Brand
RADNOR
Outlet Connection
9/16 in.-18 M LH
CGA Connection Inlet
CGA510
Package Quantity
1
Cylinder Gas
Acetylene
Regulator Capacity
Medium Duty
Delivery Pressure Range
2 to 15 psi
Regulator Supply Type
Cylinder
Gas Service
Acetylene
Series
250-15-510
Gauge Size
2 in.
Shipping Weight
3.01 lb.
Gauges Delivery Pressure
2 to 15 psi
Stages
Single Stage
Inlet Connection
CGA-510
Type
Single Stage, Medium Duty
Item
Gas Regulator
General
CGA Number
CGA 510
Number of Stages
Single Stage
Compatible Gas Type
Acetylene
Outlet Connection Gender
Male
Gauge Diameter
2 in
Outlet Connection Size
9/16"-18
Inlet Connection Gender
Female
Outlet Connection Type
UNF
Inlet Connection Size
0.885"-14
Outlet Pressure (Maximum)
15 psig
Inlet Connection Type
NGO
Outlet Pressure (Minimum)
2 psig
Inlet Thread Direction
Left Hand
Outlet Thread Direction
Left Hand
Mounting Type
Cylinder
Regulator Application
General Purpose
Product Description
This single stage regulator is suitable for use with acetylene in medium duty applications. It features a stem-type seat mechanism, sintered inlet filter, forged brass body, and zinc die-cast housing cap.
