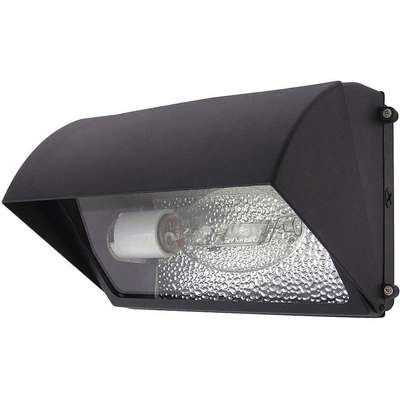

Lumapro Wall Pack, Type III Light Distribution Shape, 4300K Color Temperature, Lumens 14,000 lm

Hover over image to magnify
Wall Pack,Mh,120/208/240/277,
Wall Pack,Mh,120/208/240/277,

#916288-6 | Pkg Qty: 1

$215.98 pkg | $215.98 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
LUMAPRO
Lens Material
Glass
Height
11 in.
Mfr. Part Number
23Y145
Housing Finish
Bronze
Mounting
Directly to Wall or Junction Box
Housing Material
Die Cast Aluminum
Pack Quantity
1
IP Rating
Not Rated
Sensor Type
No Sensor Included
Item
Wall Pack
Shipping Weight
15.75 lb.
Lamp Included
Yes
Socket Style
Medium
Lamp Type
Metal Halide
Voltage
120 to 277 VAC
Lamp Watts
150 W
Width
9 in.
Length
14-1/4 in.
General
Ambient Temp. Range
-22 Degrees to 122 Degrees F
LED Replacement For
150W HPS/MH
Color Rendering Index
65
Light Distribution Shape
Type III
Fixture Housing Color
Bronze
Lighting Certification
Unrated
Fixture Housing Material
Die-Cast Aluminum
Max. Fixture Wattage
150
Fixture Lens Material
Glass
Max. Operating Temp.
122 Degrees F
Fixture Lumens Range
6001 lm and Greater
Min. Operating Temp.
-22 Degrees F
Fixture Sensor Type
No Sensor Included
Rated Life
10,000 hr
Fixture Voltage
120/277
Socket Type
Medium
Fixture Wattage
150 W
Standards
CSA Listed for Wet Locations
Includes
Adjustable Glare Shield
Suggested Lamp Item No.
1E690
Includes Lamp
Yes
Wattage Range
101 to 300 W

Product Description

These anti-glare wall packs cast light downwards around building perimeters. They use either high-pressure sodium (HPS), metal halide (MH), induction, or compact fluorescent (CFL) lamps. HPS and MH lamps produce a high-intensity light in either amber or natural light colors. Induction lighting is low maintenance and offers a long life. CFL lamps are ideal for areas where lights are left on for long periods of time, since they take more time than LEDs to reach full brightness.

Anti-glare wall packs, also called cutoff wall packs, have a shielding device that projects light downwards to minimize glare, prevent light pollution, and help meet dark sky regulations. These wall-mounted lighting fixtures are typically used to illuminate the exteriors of commercial facilities, parking garages, hospitals, and public spaces.
