FILL-RITE

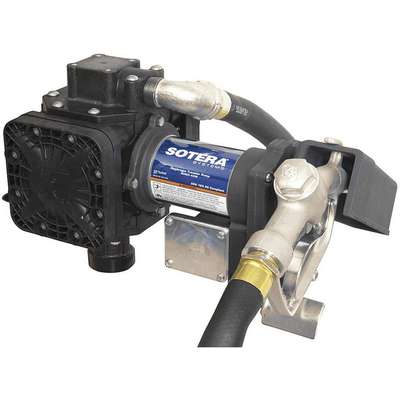

Oil Transfer Pump: Diaphragm, 13 GPM Max., 12 VDC, 1/4 HP, 12 ft Hose Lg (Ft.)
Hover over image to magnify
#916256 | Pkg Qty: 1
$1,034.99 pkg | $1,034.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
20 A
Mfr. Part Number
FR410B
Bearing Type
Sealed Ball
Mfr. Warranty Length
2 yr
Brand
FILL-RITE
Motor Type
Permanent Magnet
Bypass Valve
Internal
Nozzle Material
Polypropylene
Compatible Fluids
Oil, Anti-freeze, water, mild soaps
Nozzle Type
Manual
Duty Cycle
30 Min.
Overall Length
14 in.
GPM
13
Package Quantity
1
Horsepower
1/4
Pressure Range
0 psi to 15 psi
Hose Diameter
1 in.
Pump Design
Double Diaphragm
Hose Length
12 ft.
RPM
2,600 RPM
Hose Material
Buna Nitrile
Seal Material
Buna-N
Housing Material
glass filled polyprolyene
Seal Type
Lip
Inlet
1 in FNPT
Self-Priming
Yes
Inlet Size
1" MNPT
Shipping Weight
36 lb.
Item
Oil Transfer Pump
Transfer Pump Application
Agriculture, Construction, Farming
Maximum Pressure
15 psi
Type
Diaphragm
Maximum Viscosity
3000 CP
Voltage
12 VDC
Metered
No
General
Application
For Transferring Fluids Such As Ethylene Glycol, Diesel Fuel, Grease, Hydraulic Oil, Kerosene, Motor Oil, Water
Max. Temp.
130 Degrees F
Features
Thermal Overload Protection
Max. Viscosity (SSU)
15,000 SUS
GPM Max.
13 gpm
Power Cord Length (Ft.)
20 ft
HP
1/4 hp
Suction Lift (Ft.)
Diesel 11, Water 10
Includes
1 in Manual Nozzle and Telescoping Suction Pipe, 1 in x12 Ft Buna hose
Product Description
Have wetted parts for the safe transfer of heavy industrial fluids and chemicals. Dual diaphragms optimize flow rate and the adjustable outlet port eases installation. 1/4-HP permanent magnet motors have thermal overload protection. For nonpotable water applications and particulate fluids to 1/10".
Expertly Selected Product Pairings
Item Barcode
Diaphragm Pump,12VDC,13 Gpm
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5P233 | Diaphragm Pump,12VDC, |
 | UNSPSC CODES | 40151524 | |
 | VMRS (ATA) CODES | 053-008-004 | Diaphragm Pump,12VDC, |
