STRONGARM

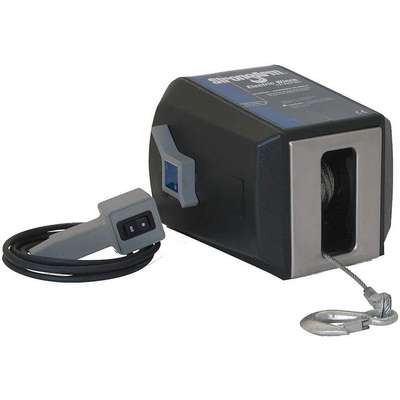

Strongarm 12VDC Pulling Electric Winch with 9.0 fpm and 1500 lb. 1st Layer Load Capacity
Hover over image to magnify
#916153-4 | Pkg Qty: 1
$518.89 pkg | $518.89 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
1st Layer Line Speed
9 fpm
Overall Height
8-1/8 in.
1st Layer Load Capacity
1500 lb.
Overall Length
10-13/16 in.
Brand
STRONGARM
Overall Width
8-3/16 in.
Clutch Type
Freespooling
Package Quantity
1
Full Load Amps
70
Rope Diameter
3/16 in.
Gear Ratio
189:1
Rope Length
20 ft.
Gear Type
Spur Gear
Rope Material
Wire
Horsepower
0.6
Series
Strongarm
Item
Electric Winch
Shipping Weight
25.15 lb.
Mfr. Part Number
SA5015DC
Voltage Rating
12 VDC
Mfr. Warranty Length
1 yr.
Winch Type
Pulling
General
1st Layer Line Pull
1500 lb
Included Rope Length
20 ft
1st Layer Line Speed (FPM)
12
Includes
Factory Installed Remote Control and Emergency Crank Handle
Clutch Release
Yes
Length (In.)
10-13/16
Control Pendant Cord Length
10 ft
Mechanical Brake
Yes
Drum Capacity for 1/4 In. Cable
56 ft
No Load Line Speed
35 fpm
First Layer Line Speed
9 fpm
Pulley Block
No
Free Spooling Clutch Type
Lever
Pulling Capacity Single Line (Lbs.)
1500
Free Wheel
Yes
Remote Control
10 ft. Cord
Full Load Empty Reel Line Speed
4 fpm
Type Gearing
Spur
Full Load Full Reel Line Speed
8 fpm
Width (In.)
8-3/16
Full Load Line Speed
4.0 fpm
Winch Gear Ratio
189:1
Height (In.)
8-1/8
Winch Gear Type
Spur
Included Rope Dia.
3/16 in
Wire Rope (Ft. x In.)
25 x 3/16
Product Description
12VDC Electric Winches Utility These winches are designed for intermediate-duty cycles and are typically used for fixed-mount applications including light construction, agriculture, maintenance, and repair.
Item Barcode
Electric Winch,3/5HP,12VDC
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 13R485 | Electric Winch,3/5HP, |
 | UNSPSC CODES | 24101608 | |
 | VMRS (ATA) CODES | 053-006-009 | Electric Winch,3/5HP, |
