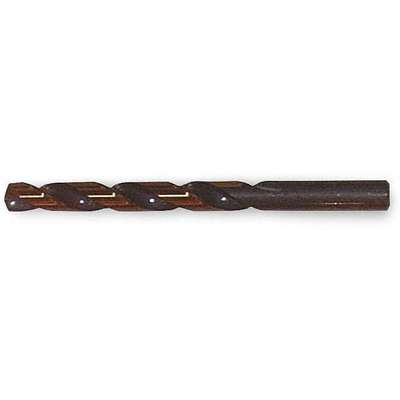

Westward Mechanics Length Drill Bit: 9/32 in Drill Bit Size, 2 1/4 in Flute Lg, 9/32 in Shank Dia.
Hover over image to magnify
#916079-8 | Pkg Qty: 1
$4.30 pkg
| $4.30 ea
Technical Specifications
Key Specifications
Application
For Alloy, Carbon And Tool Steels And Cast Iron
Flute Type
Spiral
Basic Drill Bit Material
High Speed Steel
Grade
Heavy Duty
Brand
WESTWARD
Item
Mechanics Length Drill Bit
Cutting Direction
Right Hand
Number of Pieces
1
Decimal Equivalent
0.2813
Overall Length
3-3/4 in.
Depth x Diameter Ratio
4xD
Pack Quantity
1
Dimension Type
Fractional Inch
Point Angle
135 deg.
Drill Bit Dimension Type
Fractional Inch
Point Type
Split Point
Drill Bit Finish
Black/Gold
Shank Diameter
9/32 in.
Drill Bit Material
High Speed Steel
Shank Type
Straight with Three Flats
Drill Bit Point Angle
135 deg.
Standards
Not Rated
Drill Bit Size
9/32 in.
System of Measurement
Fractional
Flute Length
2-1/4 in.
Type
Standard
General
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Depth:Dia. Ratio
4xD
Material Grade - Machining
Heavy Duty
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Shank Dia.
9/32 in
Drill Length Class
Mechanics Length
Shank Type - Machining
Straight with Three Flats
Finish - Machining
Black & Gold
Product Description
The black-and-gold-oxide finish on these drill bits lubricates the drill bit and provides some resistance to wear and rust. The bits are made from high-speed steel, which provides some flexibility and absorbs some shock and vibration.
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Documents
Item Barcode
Mechanics Drill,Hss,9/32,135
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 2UFW1 | Mechanics Drill,HSS,9/ |
|
UNSPSC CODES | 20111614 | |
|
VMRS (ATA) CODES | 053-006-009 | Mechanics Drill,HSS,9/ |
