WIDIA GTD

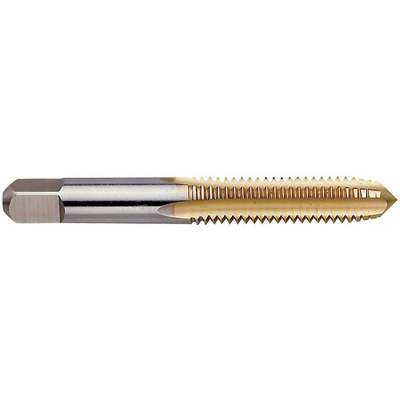

#10-32, Tap, Right Hand, Bottoming, 4 Flutes, Vanadium High Speed Steel, TiN Tap Finish

Hover over image to magnify
Hand Tap,Bottom,#10x32,Tin
Hand Tap,Bottom,#10x32,Tin

#916050-5 | Pkg Qty: 1

$10.23 pkg | $10.23 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
WIDIA GTD
Shank Length
1-1/2 in. in.
Cutting Direction
Right
Shipping Weight
.01 lb.
Dimension Type
Decimal Inch
Spiral Direction
Neutral
Finish
TiN
Square Size
0.152 in.
Flutes
4
Subgroup | Tap
Straight Flute
Insert Material
High Speed Steel
Tap Chamfer
Bottoming
Item
Straight Flute Tap
Tap Dimension Type
Inch
List Number
2305
Tap Finish
TiN
Material
Vanadium High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
19238
Tap Size
#10
Number of Flutes
4
Tap Style
Straight Flute (Hand)
Number of Pieces
1
Tap Thread Size
#10-32
Overall Length
2-3/8 in.
Tap Thread Type
UNF
Package Quantity
1
Thread Direction
Right Hand
Pitch
32
Thread Length
7/8 in.
Pitch Diameter Limits
H3
Thread Size
#10-32
Primary Material Application
Steel
Thread Type
UNF
Series
5305/2305
Type
Bottoming
Shank Diameter
3/16 in.
General
55% Thread Drill Size
4.25 mm
Shank Type - Machining
Straight
65% Thread Drill Size
4.15 mm
Standards
ANSI
Application
For Tapping Under Power Through Shallow or Blind Holes
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Tap Length Standard
ANSI 302
Extended Neck
Yes
Tap Shank Standard
ANSI 302
Measurement System
Pipe
Thread Limit
H3
Primary Material Application ISO Code
P
Thread Limit / Class of Fit
H3
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Thread Standard
UNF, UNJF
Secondary Material Application ISO Code
K, M, N
Threads per Inch
32
Shank Dia.
3/16 in

Product Description

Heavy-Duty HSS Surface-Treated Hand Taps

  • GTD taps are for use with steel and stainless steel 30RC, and cast iron OSG taps are for use with aluminum, steel, stainless steel, and cast iron
  • For general machine or CNC tapping. Choose TiN Coated for higher tapping speeds and areas where increased tap wear life and improved thread finish are needed. Choose TiCN Coated for high-temperature applications.
