SPEEDAIRE

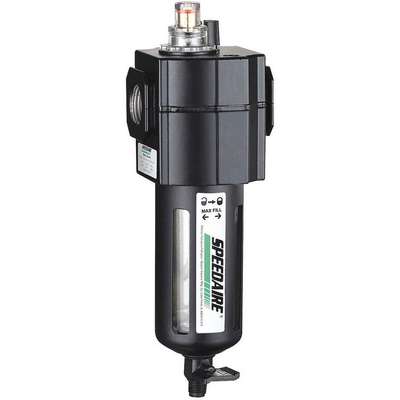

1/4" NPT Modular Air Line Lubricator, 60 cfm Max. Flow, 150 psi Max. Pressure

Hover over image to magnify
Air Line Lubricator,1/4In,60
Air Line Lubricator,1/4In,60

#916036-1 | Pkg Qty: 1

$61.70 pkg | $61.70 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adjustment Type
Screwdriver
Maximum Temperature (Deg. F)
125
Air Consumption
scfm
Mfr. Part Number
4ZL79
Body Material
Aluminum
NPT
1/4 in.
Bowl Material
Polycarbonate with Steel Guard
Overall Height
8.15 in.
Brand
SPEEDAIRE
Overall Length
2.45 in.
Dome
Red 360 Sight/feed, Where 10 to 15% of the Oil Drops Visible are Delivered
Overall Width
2.68 in.
Drain Included
Yes
Package Quantity
1
Item
Modular Air Line Lubricator
Pipe Size
1/4 in. NPT
Maximum Flow
60 cfm
Series
Intermediate
Maximum Flow (CFM)
60 CFM
Shipping Weight
1.3 lb.
Maximum Pressure
150 psi
Width
2.68 in.
Maximum Temperature
125 deg. F
General
Adjustment Mechanism
Screwdriver
Lubricator Bowl Capacity
3.5 oz
Air Flow Direction
Left to Right
Lubricator Bowl Guard Material
Iron
Air Inlet Gender
Female
Lubricator Bowl Material
Polycarbonate with Steel Guard
Air Inlet Type
NPT
Lubricator Type
Micro Mist
Air Outlet Gender
Female
Max. Pipe Run
50 ft
Air Outlet Size
1/4 in
Modular Connection
No Modular Connection
Air Outlet Type
NPT
Oil Feed Type
Micromist
Dome Material
Transparent Nylon
Recommended Lubricant
ISO VG 32
Drain Part Compatibility
1AKG9A
Sensor
Integral Flow, Provides Proportional Control
For Fluid Type
Compressed Air
Sight Dome Included
Yes
For Maximum Pipe Run
50 ft
Sight Gauge Included
Yes
For Substance Type
Air
System Location
Air Line
Includes
(1) Oil Drop Controller

Product Description

Lubricator maintains a constant oil-to-air density over a wide range of flow. Provides lubrication for multiple pneumatic tools/devices. An integral flow sensor provides proportional control. Comes equipped with a red 360° sight/feed dome. For the Max. Flow, the CFM is based on 90 psig inlet and 5 psig pressure drop.

  • Modular connector allows easy removal and swap out
  • Up to 50-ft. pipe runs Note: Polycarbonate bowls are not recommended for use in atmospheres containing chemicals such as acetone, benzene, carbon tetrachloride, ethylene dichloride, gasoline, toluene, and or air compressor systems using synthetic fire-resistant lubricants.
