BLACKBURN

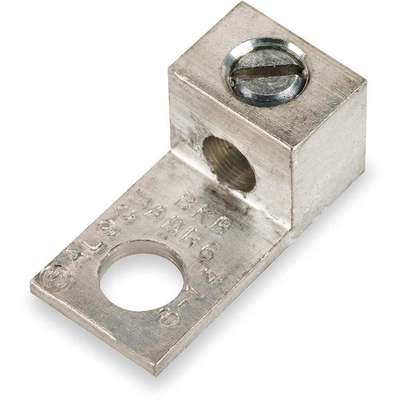

Blackburn Mechanical Connector, Aluminum, Max. Conductor Size: 350 kcmil Stranded
Hover over image to magnify
#916019-9 | Pkg Qty: 1
$9.57 pkg | $9.57 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum
Mount
1 Hole
Brand
BLACKBURN
Number of Conductors
1
Connector Type
Dual Rated Lug
Number of Holes
1
Head Style
Socket
Pack Quantity
1
Item
Mechanical Connector
Shipping Weight
.15 lb.
Length
2-1/4 in.
Stud Size
3/8 in.
Material
Aluminum
Stud/Tab Size
3/8 in.
Maximum Conductor Size
350 kcmil Stranded
Type
Single-Conductor
Mfr. Part Number
ADR35
Width
0.13 in.
Minimum Conductor Size
6 AWG Stranded
General
Connection Orientation
Dual Rated Lug
No. of Holes
1
Contact Finish
Tin
Number of Terminations
1
For Conductor Material
Aluminum, Copper
Standards
UL 486B Tested, AL9CU Rated
For Stranded Copper Wire Size - Maximum
350 kcmil
Tongue Length
1.13 in
For Stranded Copper Wire Size - Minimum
6 AWG
Tongue Thickness
0.25 in
For Stud Size
3/8 in
Tongue Width
1.13 in
For Wire Size
1/0 AWG, 1 AWG, 2/0 AWG, 250 kcmil, 2 AWG, 300 kcmil, 3/0 AWG, 350 kcmil, 4/0 AWG, 6 AWG
UL Standard
UL 486A-486B
No. of Conductors
1
Wire Size Ranges
6 AWG – 350 kcmil
Product Description
This conductor is designed to offer easy installation, without requiring additional tools. It features tin-plated, aluminum construction.
Expertly Selected Product Pairings
Item Barcode
Connector,1 Conductor
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3LN40 | Connector,1 Conductor |
 | UNSPSC CODES | 39121408 | |
 | VMRS (ATA) CODES | 053-007-002 | Connector,1 Conductor |
