AFC MC CABLES

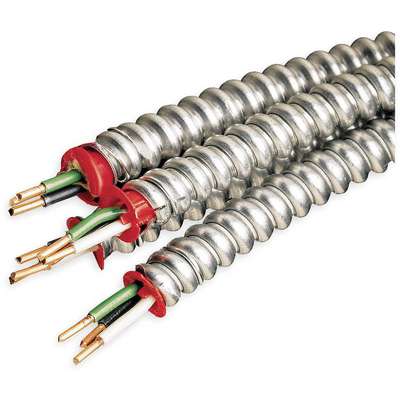

250 ft. Solid Armored Cable; Conductors: 2 with Ground, 12 AWG Wire Size, Silver

Hover over image to magnify
Flexible Metal  Cable,12/2
PI_Asset_1354491
Flexible Metal  Cable,12/2
PI_Asset_1354491

#915957-1 | Pkg Qty: 1

$409.62 pkg | $409.62 ea
Catalog:

Technical Specifications

Application
General Purpose
Mfr. Part Number
2104S42-00
Brand
AFC MC CABLES
Nominal Outside Diameter
0.495 in.
Cable Type
MC Lite
Number of Conductors
2 with Ground
Cable/Wire Type
MC Lite
Pack Quantity
1
Color Family
Silver
Packaging
Coil
Conductor
Solid Copper
Shipping Weight
28.1 lb.
Conductor Material
Solid Copper
Spool Length
250 ft.
Description/Special Features
Branch, Feeder and Service Power Distribution in. Commercial, industrial, institutional and Multi-residential Buildings, THHN/THWN 90 C Dry insulation
Standards
UL 83, 1479, 1569, 1581, 2556, File Reference E80042
Features
Branch, Feeder and Service Power Distribution in Commercial, Industrial, Institutional and Multi-residential Buildings, THHN/THWN 90C Dry Insulation
Stranded / Solid
Solid
Gauge/Conductor
12/2 with Ground
Type
MC-Lite
Item
Metal Clad Armored Cable
Voltage
600 V
Jacket Color
Silver
Wire Color
Black, White, Green
Jacket Material
Aluminum
Wire Size
12 AWG
Jacket Type
Aluminum
Wire and Cable Item
Metal Clad Armored Cable
Length
250 ft.
Wire/Cable Jacket Material
Aluminum
Maximum Amps
20
Wire/Cable Size
12 AWG
Maximum Voltage
600 V

Product Description

Armored building cable is a collection of plastic-coated insulated wire bundled together and protected by a corrugated metal jacket (called a sheath or cord) that serves as a conduit and provides grounding. Also known as BX cable or metal-clad (MC) cable, armored cable prevents accidental penetration better than NM-B building cable, but it is heavier and harder to handle, rip back, and cut. It is often used in applications where cable will be exposed to mechanical or environmental damage under normal operating conditions, such as power circuits in industrial plants and commercial buildings.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.

Item Barcode
9159571
Flexible Metal Cable,12/2
  Name Item Description
Grainger Dropship Grainger Dropship 4JC30 Flexible Metal Cable,
UNSPSC CODES UNSPSC CODES 26121613
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Flexible Metal Cable,
