SOUTHWIRE COMPANY

Southwire Company Plenum Thermostat Wire with 6 Conductors and Wire Size of 18 AWG, White

Hover over image to magnify

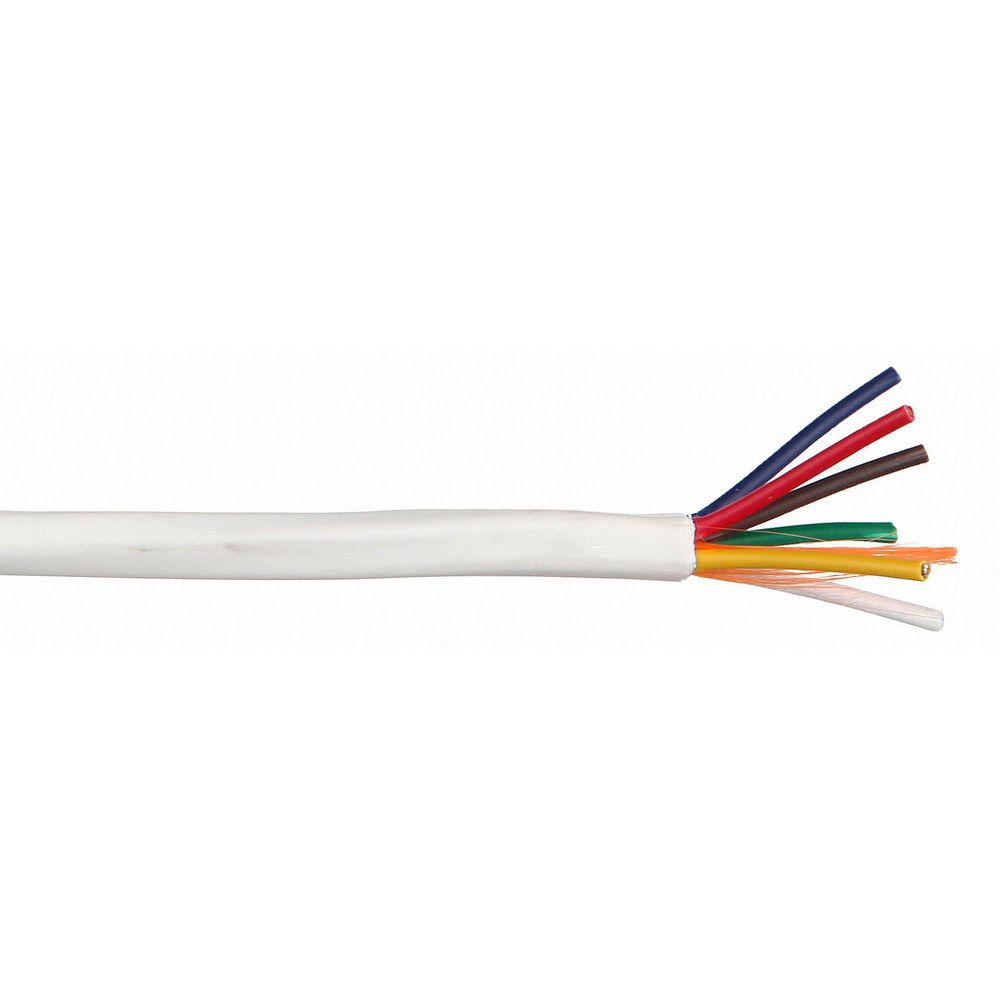

Thermostat Wire,18/6,Plenum
PI_Asset_1353927
Thermostat Wire,18/6,Plenum
PI_Asset_1353927

#915907-1 | Pkg Qty: 1

$173.85 pkg | $173.85 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SOUTHWIRE COMPANY
Number of Conductors
6
Cable Rating
CL2P
Package Quantity
1
Cable Type
Plenum
Package Type
Spool
Cable/Wire Type
Plenum
Packaging
Spool
Gauge/Conductor
18/6
Shipping Weight
10.35 lb.
Item
Thermostat Wire
Spool/Coil Length
250 ft.
Jacket Color
White
Type
Plenum Rated
Length
250 ft.
Voltage
300
Maximum Temperature
60 deg. C
Wire Size
18 AWG
Mfr. Part Number
555060423
Wire and Cable Item
Thermostat Wire
Nominal Outside Diameter
0.2
Wire/Cable Size
18 AWG
General
Cable Type - Wire and Cable
Plenum
Standards
CL2P Plenum Rated
Conductor Design
Solid
Temp. Rating
140°F
Max. Temp.
60°C
Wire Size - Wire and Cable
18 AWG

Product Description

Plenum-rated thermostat wire is electrical cable that has been rated to run through the air-circulation spaces in buildings, usually located between the structural and suspended ceiling or under a raised floor. It is used to connect thermostat controls to a main power circuit via the ceiling or floor. It has a flame-retardant jacket that, in the event of a fire, emits fewer harmful fumes and is less toxic than nonplenum-rated thermostat wire.

Thermostat wire is electrical cable that connects thermostat controls to a main power circuit. It is typically used in commercial buildings to wire heating and air conditioning controls, as well as bell and fire alarm systems. It consists of multiple insulated conductors encased inside a protective jacket. Each conductor is color coded to help ensure the correct connection to the control board.
