WESTWARD

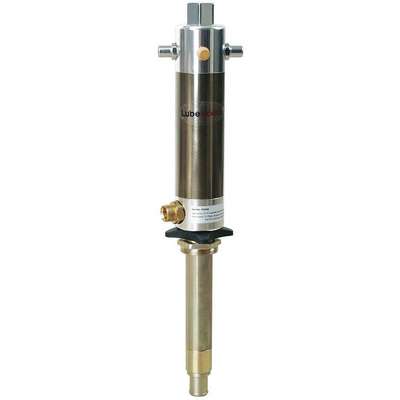

Air Operated Drum Pump: Basic Pump without Discharge Hose, 6.5 cfm Air Consumption

Hover over image to magnify
Stub Oil Pump,Air Op,Pump
Stub Oil Pump,Air Op,Pump

#915851-6 | Pkg Qty: 1

$587.30 pkg | $587.30 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Inlet
1/4 FNPT
Mfr. Part Number
5TCU2
Air Inlet Size
1/4 in. NPT
Minimum Air Inlet Pressure
70
Air Motor Size
2-1/2 in.
Outlet Pressure Maximum
580
Brand
WESTWARD
Package Quantity
1
Consumption @ 100 PSI
6.5 cfm
Power Source
Air
Container Size
2.8 gal.
Pump Ratio
5:1
Fluid Outlet Thread
3/4 MNPT
Pump for Multiple Outlets
Yes
Item
Stub Oil Pump
Shipping Weight
1 lb.
Maximum Air Inlet PSI
115
Type
Air Operated
Maximum Output
6.6 gpm
Working Flow Maximum
6.6
General
Compatible Chemicals
Motor Oil
Max. Air Pressure
115 psi
Discharge Connection Type
MNPT
Max. Flow Rate
6.6 gpm
Discharge Tube Outlet ID
3/4 in
Max. Oil Flow
6.6 gpm
For Container Size
55 gal, 275 gal
Max. Outlet Pressure
580 psi
For Container Type
Drum, Tote
Min. Air Pressure
70 psi
For Media Type
Motor Oil
Not Recommended Chemicals
Antifreeze (Coolant), Biodiesel, Brake Fluid, DEF, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fertilizers, Fresh Water, Fungicides, Gasoline, Herbicides, Isopropyl (Isopropanol), Kerosene, Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%), Windshield Washer Fluid
For Use With
Oils Up To SAE 144
Pump Package Type
Basic Pump without Discharge Hose
Includes Suction Tube
Yes
Working Flow Max. (GPM)
6.6

Product Description

This air-operated oil pump is designed for heavy-duty, high-flow applications such as oils up to SAE 144. Includes pump and suction tube.
