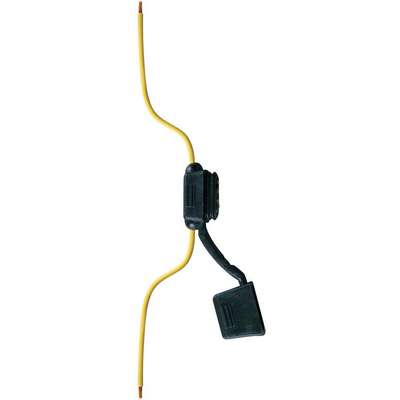

1-Pole Automotive Fuse Holder, AC: Not Rated, DC: 32VDC, 1 to 20A, Series ATC

1-Pole Automotive Fuse Holder, AC: Not Rated, DC: 32VDC, 1 to 20A, Series ATC

#915844-5 | Pkg Qty: 1

$5.47 pkg | $5.47 ea
Item Number 915844-5
Scanner Description Automotive Fuse, Amps
Inventory Status Drop Ship Item
Weight 0.03 lb
Brand BUSSMANN

Technical Specifications

AC Voltage Rating
Not Rated
Fuse Length
1.125 in.
Amp Range of Fuse Block or Holder
1 to 20A
Fuse Size Diameter
0.9
Amperage Range
1-20 A
Fuse Size Length
1-1/8
Amps AC
20
Fuse Type
Automotive
Blown Fuse Indicator
No
Fuse UL Class
Not Class Rated
Body Material
Rubber
Height
0.62 in.
Brand
BUSSMANN
Indicating / Nonindicating
Nonindicating
Color Family
Yellow
Item
Fuse Holder
DC Voltage Rating
32VDC
Length
1.12 in.
Depth
5/8 in.
Maximum Amps
20
Features
Cover
Maximum Voltage
32 V
For Fuse Series
ATC
Mfr. Part Number
HHF
For Use With
ATC Fuse 1-20 Amps
Mounting Style
Inline
Fuse Block Design
Not Applicable
Number of Poles
1
Fuse Block or Fuse Holder Type
Fuse Holder
Pack Quantity
1
Fuse Block or Holder AC Voltage Rating
Not Rated
Series
HHF
Fuse Block or Holder DC Voltage Rating
32VDC
Type
Automotive
Fuse Diameter
0.9 in.
Width
0.9 in.
Fuse Dimensions
1-1/8 in.L x 1-3/8 in.H x 23/64 in.W
Wire Gauge
16 AWG

Product Description

These in-line fuse holders are compatible with automotive blade fuses commonly used for overcurrent protection of vehicle wiring and electrical systems. The blade-style contacts of automotive blade fuses plug into these holders for a secure connection. They're typically used to hold fuses in cars, trucks, RVs, and DC-powered equipment.

Documents

Item Barcode
9158445
  Name Item Description
Grainger Dropship Grainger Dropship 6AYD4 Automotive Fuse, Amps
UNSPSC CODES UNSPSC CODES 39121617
VMRS (ATA) CODES VMRS (ATA) CODES 034-004-105 Automotive Fuse, Amps
