DAYTON

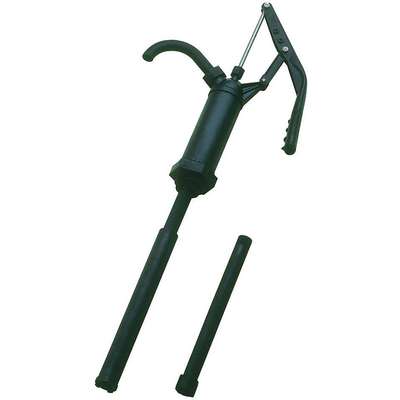

Polyphenylene Sulfide Hand Operated Drum Pump, Lever, Ounces per Stroke: 10 oz.

Hover over image to magnify
Hand Drum Pump,Lever,Ryton,1In
Hand Drum Pump,Lever,Ryton,1In

#915790 | Pkg Qty: 1

$92.71 pkg | $92.71 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action Type
Lever
Outlet Size
1"
Adapter Diameter
1-1/2 in. and 2 in.
Overall Length
50 in.
Adapter Material
Ryton(R)
Pack Quantity
1
Adapter Type
1 1/2" and 2" Bung
Piston
PVDF
Brand
DAYTON
Piston Material
PVDF
Discharge Tube Length
9"
Power Source
Hand Operated
Discharge Tube Outlet Outside Diameter
1"
Seal
PVDF
Discharge Tubing Material
Polyphenylene Sulfide
Seal Material
PVDF
For Use On
15 to 55 gal. Drums
Self-Priming
Yes
GPM
7
Shipping Weight
3.3 lb.
Hand Operated Pump Action Type
Hand Operated Lever Pumps
Suction Design
3 Piece Tube
Height
36 in.
Suction Pipe Size
1-7/16 in. OD
Housing Material
Polyphenylene Sulfide
Suction Tube Length
36 in.
Inlet Size
1"
Suction Tube Outlet Outside Diameter
1-7/16 in.
Item
Hand Operated Drum Pump
Suction Tube Type
3-Piece Tube
Maximum Liquid Temperature
140°F
Type
Lever Action
Maximum Viscosity
1500 SSU
Wetted Materials
Polyphenylene Sulfide, PVDF, Stainless Steel
Metered
No
Width
11-1/4 in.
Mfr. Part Number
5XA54
pH Range

Ounces per Stroke
10 oz.
General
Application
Low Viscosity Lubricants, Solvents, Additives, and Corrosive Liquids
Includes
3 Pieces Suction
Bung Connection Dia.
1-1/2 in, 2 in
Includes Bung Adapter
Yes
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, DEF, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Kerosene, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Includes Discharge Hose
No
Discharge Tube Outlet OD
1 in
Includes Nozzle
No
Features
Good Chemical Resistance
Includes Spout
Yes
For Container Size
15 gal, 30 gal, 55 gal
Includes Suction Tube
Yes
For Container Type
Bucket, Drum, Pail
Max. Flow Rate
10 oz per stroke
For Media Type
Antifreeze, Automatic Transmission Fluid, Bleach, Brake Fluid, DEF, Diesel Fuel, Ethanol, Gasoline, Isopropanol, Kerosene, Ketones, Water
Max. Fluid Temp.
140 Degrees F
For Use With
Additives, Corrosive Liquids, Low Viscosity Lubricants, Solvents
Pump Package Type
Basic Pump with Spout
Housing Material - Pumps
Polyphenylene Sulfide
Suction Tube OD
1 7/16 in

Product Description

Diesel exhaust fluid (DEF) hand drum pumps are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. These pumps are certified to ISO standards that regulate the handling, transportation, and storage of DEF. They are used for dispensing and transferring small volumes of DEF when servicing late model trucks and SUVs as well as SCR-based stationary industrial systems that operate on diesel fuel.
