COLUMBUS ELECTRIC

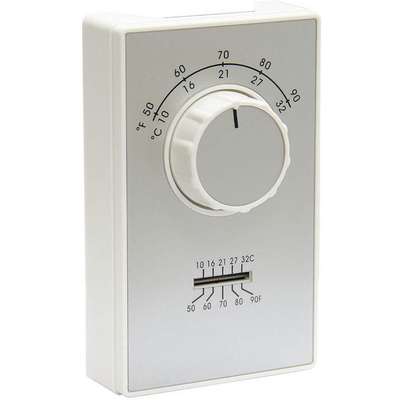

Columbus Electric Line Volt Mechanical Tstat for Heating and Cooling, 120 to 277VAC
Hover over image to magnify
#915750-1 | Pkg Qty: 1
$25.12 pkg | $25.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL and CSA
Mfr. Part Number
ETD9STGS
Brand
COLUMBUS ELECTRIC
Mounting Position
Vertical
Depth
1-1/2 in.
Package Quantity
1
Differential
2 to 4°F
Shipping Weight
.52 lb.
Display
Analog
Switch Type
SPDT
Height
4-3/4 in.
Voltage
120 to 277 VAC
Item
Line Voltage Mechanical Thermostat
Width
2-3/4 in.
General
Changeover Type
Manual
Locked Rotor Amps @ 240V
60 A
Compatible System Type
Electric Cooling, Electric Heating
Maximum Control Temperature
90 Degrees F
Contact Rating Resistive @ 120V
22 A
Minimum Control Temperature
50 Degrees F
Contact Rating Resistive @ 240V
22 A
Number of Cooling Stages
1
Contact Rating Resistive @ 277V
22 A
Number of Heating Stages
1
Differential Type
Fixed
Number of Switches
1
Fan Settings
No Fan Setting
Sensor Type
Bi-Metallic Spring
For Use With
Blowers, Furnace Fans, Baseboard and Ceiling Heaters
Switch Action
Open/Close on Rise
Full Load Amps @ 120VAC
22 A
Switch Type/Action
SPDT, Open/Close on Rise
Full Load Amps @ 240VAC
22 A
System Settings
Cool-Heat-Off
Includes
Thermometer
Temperature Control Range
50 Degrees to 90 Degrees F
Includes Positive Off
No
Temperature Differential
2 Degrees to 4 Degrees F
Inductive Amps @ 120V
13.8 A
Temperature Readout
Yes
Locked Rotor Amps @ 120V
82.8 A
Temperature Scale
Fahrenheit/Celsius
Product Description
Analog thermostats are the most basic line-voltage thermostat option and use a dial to set the temperature of a space. These mechanical thermostats are often used in residential and commercial applications. They're nonprogrammable, so the temperature setting stays the same until it's readjusted.
