COXREELS

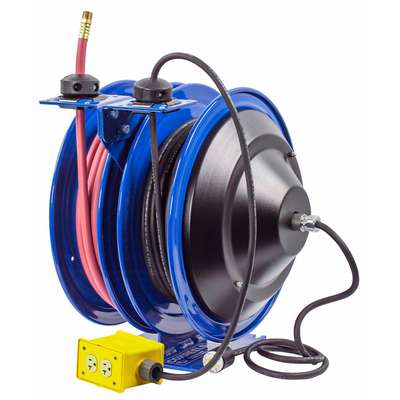

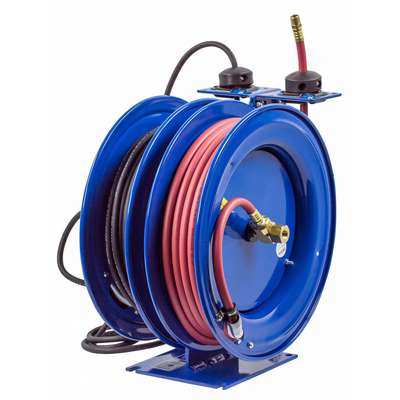

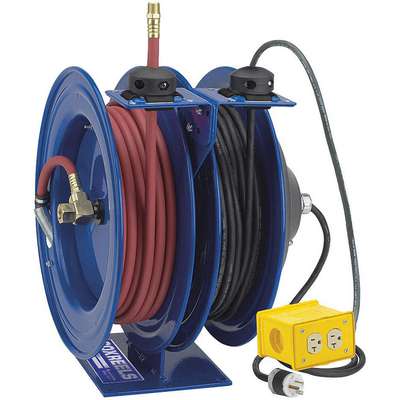

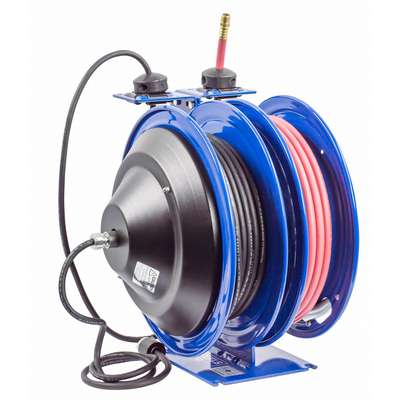

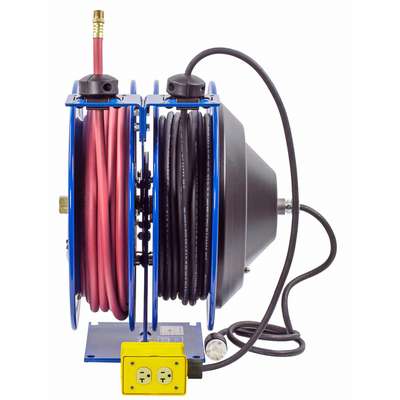

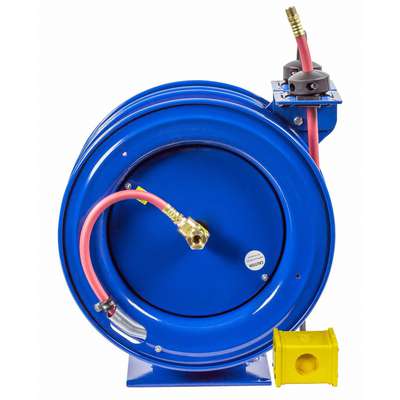

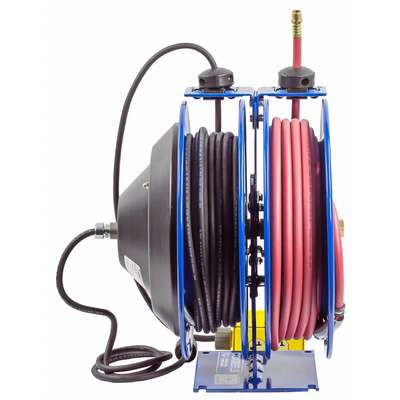

Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC

Hover over image to magnify
Reel,Combination,Spring Driven,
PI_Asset_965843
PI_Asset_965844
PI_Asset_965845
PI_Asset_965846
PI_Asset_965847
PI_Asset_965848
PI_Asset_965849
Reel,Combination,Spring Driven,
PI_Asset_965843
PI_Asset_965844
PI_Asset_965845
PI_Asset_965846
PI_Asset_965847
PI_Asset_965848
PI_Asset_965849
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video
Combination Air/Electric Reel, 20 Amps, 12 Wire Gauge (AWG), 300 psi, 3/8", Hose Length: 50 ft., AC Video

#915674 | Pkg Qty: 1

$1,087.32 pkg | $1,087.32 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Cord Length
50 ft.
Length
17-1/4 in.
Air Consumption
scfm
Maximum Pressure
300 psi
Amperage
20 A
Maximum Temperature
150 deg. F
Bearings
Permanently Lubricated
Maximum Temperature (Deg. F)
150
Brand
COXREELS
Mfr. Part Number
C-L350-5012-B
Cord Length
50 ft.
Number of Conductors
3
Drive Type
Spring Return
Number of Guide Arms
Single Arm
Duty Rating
Heavy Duty
Overall Height
18-1/4 in.
Enclosed
No
Overall Length
17-1/4 in.
Finish
Powder Coated
Overall Width
15-1/2 in.
Hose Capacity
50 ft. (3/8 in ID)
Package Quantity
1
Hose Ends
3/8 in. MNPT x 3/8 in. MNPT
Pedestal Type
Single Pedestal
Hose Included
Yes
Receptacle Type
Quad Receptacle
Hose Inside Diameter
3/8 in.
Reel Inlet
3/8 in. (F)NPT
Hose Length
50 ft.
Reel Material
Steel
Hose Material
PVC
Seal Type
Nitrile
Hose Reel Group
Combination Cord and Hose Reels
Shipping Weight
84 lb.
Housing Material
Steel
Speed Limited Retraction
No
Includes Hose
Yes
Type
Air Hose/Electrical Cord
Item
Combination Air/Electric Reel
Voltage
120
Latch
Locking
Width
15-1/2 in.
General
Base Motion Type
Stationary
Hose Reel Product Group
Combination Air/Electric Reel
Bearing Construction
Permanently Lubricated
Hose Reel Type
Wall Mount Hose Reel
Combination Type
Air/Electric
Include Hose Stop
Yes
Cord Current
20 A
Includes
Cord, Hose, Quad Industrial Receptacle
Cord Gauge
12 AWG
Includes Cord
Yes
Feeder Cord Ending
Grounding Plug
Minimum Operating Pressure
0 psi
Feeder Cord Ending Configuration
NEMA 5-20P
Mount Base Height
9 in
Feeder Cord Length
5 ft
Mount Base Width
8 in
Fitting Gender
Male x Male
Mount Hole Diameter
1/2 in
Hose 1 Cover Material
PVC
Mounting Hole Center to Center Height
8 in
Hose 1 Fitting A Gender
Male
Mounting Hole Center to Center Width
7 in
Hose 1 Fitting A Material
Brass
Number of Mount Holes
4
Hose 1 Fitting A Size
3/8 in
Plug Type
NEMA 5-20P
Hose 1 Fitting A Type
NPT
Reel Finish
Powder Coated
Hose 1 Fitting B Gender
Male
Retractable Cord Ending
Single Plug
Hose 1 Fitting B Material
Brass
Retractable Cord Ending Configuration
NEMA 5-20P
Hose 1 Fitting B Size
3/8 in
Retractable Cord Length
50 ft
Hose 1 Fitting B Type
NPT
Swivel Inlet Gender
Female
Hose 1 Inside Diameter
3/8 in
Swivel Inlet Size
3/8 in
Hose 1 Length
50 ft
Swivel Inlet Thread Size
3/8 in - 18
Hose 1 Outside Diameter
5/8 in
Swivel Inlet Type
NPT
Hose 1 Tube Material
PVC
Swivel Material
Brass
Hose End Configuration
3/8 in MNPT x 3/8 in MNPT
Swivel Outlet Gender
Female
Hose Inside Dia.
3/8 in
Swivel Outlet Size
3/8 in
Hose Outlet
3/8 in (M)NPT
Swivel Outlet Thread Size
3/8 in - 18
Hose Reel Primary Application
Air, Electric
Swivel Outlet Type
NPT

Product Description

Air and electric combination spring-return hose reels combine two reels in one compact assembly for applications requiring pneumatic air and an electrical power feed. The two reels operate independently, but are mounted together on a single expanded, steel base for extra stability. These low-pressure (up to 500 psi), combination reels mount indoors to the floor, wall, ceiling, or a bench, and require only one mounting pattern to save installation time. The guide arm adjusts to the wall, floor, and overhead positions. The spring-return, also called self-retracting, spring-driven, or spring rewind, allows users to manually rewind hose onto the reel without an external power source. The spring-return has a locking ratchet and pawl that locks into place once users have pulled the hose to the desired length. The ratchet is released by pulling the hose out, and then hose can be rewound onto the reel. Air and electric dual-purpose reels hold air and electric hoses/cables and are used with pneumatic and power tools, with air services, and as a light source.
