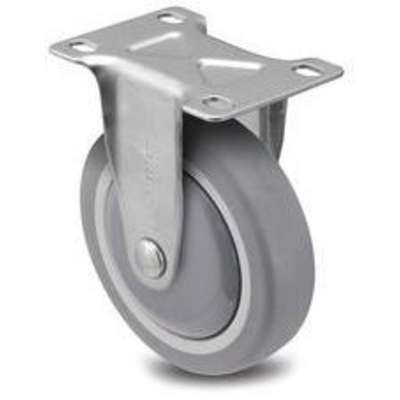

6" Light-Medium Duty Rigid Plate Caster, 300 lb. Load Rating

6" Light-Medium Duty Rigid Plate Caster, 300 lb. Load Rating
Rigid Plate Caster,300 Lb,6 In
PI_Asset_1355369

#915663-5 | Pkg Qty: 1

$30.60 pkg | $30.60 ea
Item Number 915663-5
Scanner Description Rigid Plate Caster,300 Lb,6 In
Inventory Status Drop Ship Item
Weight 1.55 lb
Brand APPROVED SUPPLIER

Technical Specifications

Application
Hospital Equipment, Utility Carts, Store Fixtures, Institutional Equipment, Office Equipment, Food Service
Includes
Thread Guards
Brand
APPROVED SUPPLIER
Inside Bolt Hole Spacing
1-3/4 in. x 2-13/16 in.
Caster Brake Included
No
Item
Plate Caster
Caster Core Material
Polyolefin
Load Rating
300 lb.
Caster Group
Rigid Caster
Mfr. Part Number
3ENW9
Caster Load Rating Range
Light- Medium Duty
Non-Marking
Yes
Caster Max. Temp.
175°F
Number of Wheels
1
Caster Min. Temp
-40°F
Outside Bolt Hole Spacing
1-3/4 in. x 3-1/16 in.
Caster Plate Hole Pattern
C
Overall Height
7-1/4 in.
Caster Plate Size
2-1/2 in. x 3-5/8 in.
Pack Quantity
1
Caster Swivel Lock Type
No Lock Included
Plate Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Plate Size
2-1/2 in. x 3-5/8 in.
Caster Wheel Bearings
Ball
Standards
ANSI/ICWM
Caster Wheel Shape
Crown
Wheel Color
Gray
Caster Wheel/Tread Material
Polyurethane
Wheel Color Family
Gray
Core Color
Gray
Wheel Dia.
6 in.
Durometer
95 Shore A
Wheel Width
1-1/4 in.
Frame Finish
Zinc Plated

Product Description

Debris-resistant light-duty standard plate casters each have a thread guard that prevents thread and debris from getting into the caster's axle and damaging or contaminating it. This helps extend the life of the casters when they're used in dusty or dirty environments. They are suitable for transporting relatively light loads along smooth, flat surfaces in applications where they won't encounter shock loading, such as laundry rooms, textile factories, offices, retail stores, schools, and government buildings. The casters attach to the bottom of carts, dollies, tables, and similar equipment that will be moved manually at moderate speeds. Sometimes known as institutional plate casters, these light-duty standard plate casters have Zinc-Plated steel frames.

Item Barcode
9156635
  Name Item Description
Grainger Dropship Grainger Dropship 3ENW9 Rigid Plate Caster,300
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-003 Rigid Plate Caster,300
