SQUARE D

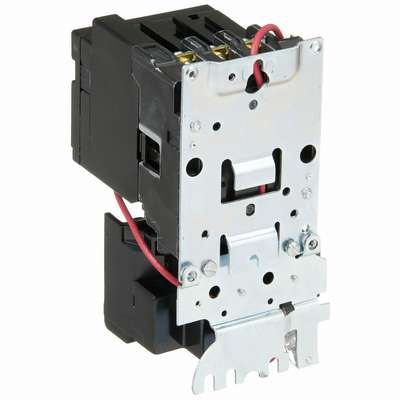

Square D Magnetic Motor Starter, 120VAC Coil Volts, NEMA Size: 1, Starter Type: NEMA

Hover over image to magnify
Magnetic Motor Starter,Nema,
Magnetic Motor Starter,Nema,

#915604 | Pkg Qty: 1

$720.13 pkg | $720.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Accessory Group
D3
Hz
50/60
Action
Nonreversing
Item
Magnetic Motor Starter
Amps AC
27 A
Mfr. Part Number
8536SCO3V02S
Brand
SQUARE D
NEMA Enclosure Type
Open
Coil Volts
120 VAC
Number of Poles
3
Depth
4.22 in.
Pack Quantity
1
Enclosure NEMA Rating
No Enclosure
Shipping Weight
3.95 lb.
Enclosure Type
Open
Starter Type
NE mA
HP @ 3 Phase - 240 V
7-1/2 hp
Type
NEMA
HP @ 3 Phase - 480 V
10 hp
Width
4.53 in.
Height
6.77 in.
General
HP @ 3 Phase - 208V
7 1/2 hp
HP @ 3 Phase 240V
7-1/2
HP @ 3 Phase - 230V
7-1/2
HP @ 3 Phase 480V
10
HP @ 3 Phase - 240V
7 1/2 hp
NEMA Size
1
HP @ 3 Phase - 460V
10
Standards
CSA Certified
HP @ 3 Phase - 480V
10 hp
Thermal Unit Code
D3
HP @ 3 Phase - 575V
10 hp

Product Description

Full-voltage starters start and stop 1- and 3-phase AC motors. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Open enclosure Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Provide Class 20 protection.
