SCHNEIDER ELECTRIC

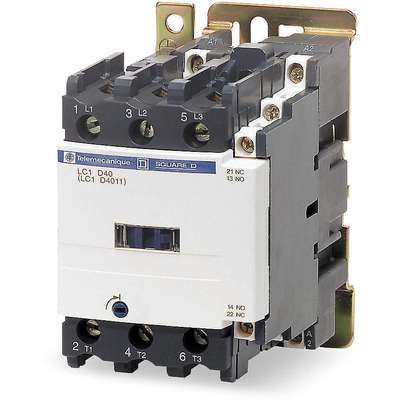

Schneider Electric 24VAC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 40 Full Load Amps-Inductive

Hover over image to magnify
Contactor,Iec,24VAC,3P,40A
Contactor,Iec,24VAC,3P,40A

#915599-6 | Pkg Qty: 1

$348.72 pkg | $348.72 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
Nonreversing
Item
IEC Magnetic Contactor
Brand
SCHNEIDER ELECTRIC
Mfr. Part Number
LC1D40AB7
Coil Volts
24 VAC
Number of Poles
3
Depth
4.61 in.
Pack Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Series
TeSys
Height
2.17 in.
Shipping Weight
2.1 lb.
Hz
50/60
Width
2.17 in.
General
Aux. Contact Configuration
1NO/1NC
HP @ 1 Phase - 240V
5 hp
Auxiliary Contact Form
1NC/1NO
HP @ 3 Phase - 208V
10 hp
Contactor Type
IEC
HP @ 3 Phase - 230V
10
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 240V
10 hp
Full Load Amps-Inductive
40 A
HP @ 3 Phase - 480V
30 hp
Full Load Amps-Resistive
60 A
HP @ 3 Phase - 575V
30 hp
HP @ 1 Phase - 120V
3 hp
Includes
Everlink Power Connections
HP @ 1 Phase - 230V
5
Standards
UL, CSA, CE

Product Description

TeSys IEC Contactors and Overload Relays

  • For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount.
  • CSA and CE Certified.
  • Contactors
  • Mechanical life: 15 million operations. Inclined wire guides and captive screws. 60/50 Hz coil. IP20 touch-safe with removable terminal cover.
