DELHI

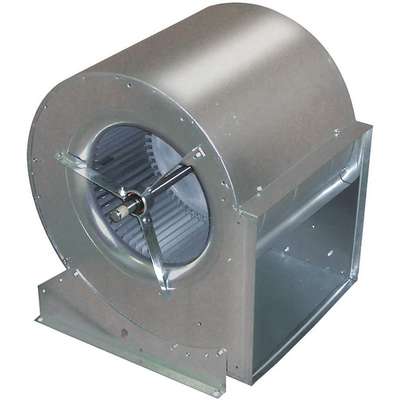

Delhi Blower, Galvanized Steel, Double Inlet Forward Curve, Belt Drive, Less Motor

Hover over image to magnify
Blower,Bd,Less Motor,11-9/16
Blower,Bd,Less Motor,11-9/16

#915596 | Pkg Qty: 1

$353.13 pkg | $353.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearing Type
Ball
Package Quantity
1
Brand
DELHI
Shipping Weight
28.64 lb.
Item
Blower
Wheel Diameter
11-9/16 in.
Mfr. Part Number
9005441
Wheel Width
10-13/16 in.
General
Discharge Height (In.)
11 3/8 in
Max. Ambient Temp. (F)
104 Degrees F
Discharge Width (In.)
13 1/8 in
Max. Inlet Temp. (Deg. F)
250 Degrees F
Housing Depth (In.)
16 3/4 in
Shaft Dia.
3/4 in
Housing Height (In.)
17 3/8 in
Wheel Dia. (In.)
11 9/16 in
Housing Width (In.)
14 1/8 in
Wheel Width (In.)
10 13/16 in

Product Description

Centrigual in-line duct model works as an internal air mover and is a quiet, forward-curved, ball bearing, double inlet blower. Access panel allows convenient motor and drive installation and servicing from either side. 1/2" internal fiberglass insulation helps isolate noise and overcome condensation on cabinet when used in cooling applications. Use indoors with clean-air heating, cooling, and ventilating systems. Up to 25% blower speed and cfm reduction using variable pitch motor sheaves when ordered with motor and drives.
