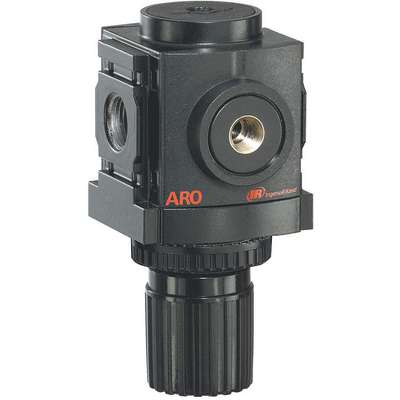

Compressed Air Regulator: Aluminum, 3/4 in NPT, 210 cfm, 0 psi to 140 psi, Knob, 2000 Series

Hover over image to magnify
Air Regulator,3/4 In NPT,210
Air Regulator,3/4 In NPT,210

#915589 | Pkg Qty: 1

$113.94 pkg | $113.94 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adjustment
0 to 140 psi
Mfr. Part Number
R37351-100
Adjustment Knob
Standard
NPT
3/4 in.
Air Consumption
scfm
Overall Height
5.41 in.
Body Material
Aluminum
Overall Length
2-3/4 in.
Brand
ARO
Overall Width
3.14 in.
Item
General Purpose Air Regulator
Package Quantity
1
Length
2.76 in.
Pipe Size
3/4 in.
Maximum Flow
210 cfm
Series
2000
Maximum Inlet Pressure
250 psi
Shipping Weight
1.7 lb.
Maximum Pressure
250 psi
Type
Aluminum
Maximum Temperature
140 deg. F
Valve Design
Balanced
General
Adjustment Mechanism
Knob
Max. Flow - Regulators
210 cfm
Adjustment Mechanism Material
Acetal
Max. Inlet Pressure - Regulators
250 psi
Adjustment Range
0 to 140 psi
Maximum Regulated Pressure
140 psi
Adjustment Range - Regulators
0 to 140 psi
Minimum Regulated Pressure
0 psi
Air Inlet Gender
Female
Modular Connection
Modular Connection
Air Inlet Type
NPT
Overall Height - Regulators
5.41 in
Air Outlet Gender
Female
Overall Width - Regulators
3.14 in
Air Outlet Size
3/4 in
Pipe Size - Regulators
3/4 in
Air Outlet Type
NPT
Pressure Gauge Port Size
1/8 in
Compressed Air Regulator Product Grouping
General Purpose Air Regulator
Pressure Gauge Port Type
NPT
For Fluid Type
Air
Regulator Body Material
Aluminum or Zinc
For Substance Type
Air
Regulator Type
Relieving
Gauge Port
1/8 in NPT
System Location
Air Line
Includes
Panel Nut

Product Description

General Purpose Air Regulator, Pipe Size - Regulators 3/4 in, Max. Flow - Regulators 210 cfm, Max. Inlet Pressure - Regulators 250 psi, Max. Temp. - Regulators 140 Degrees F, Adjustment Range - Regulators 0 to 140 psi, Standard Adjustment Knob, 1/8 in NPT Gauge Port, 2000 Series, Balanced Valve Design, Overall Height - Regulators 5.41 in, Overall Width - Regulators 3.14 in, Overall Length 2.75 in, Body Material Aluminum, Includes Panel Nut
