3M

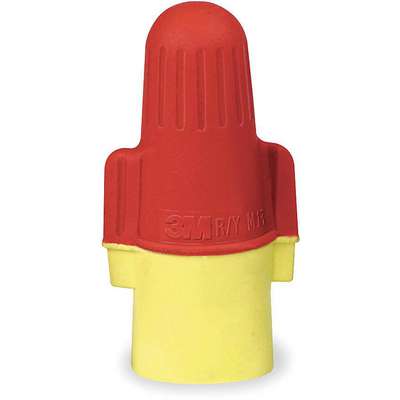

3M Twist On Wire Connector, Application Wide Range, Wire Connector Style Wing, Color Red/Yellow
Hover over image to magnify
#915455-3 | Pkg Qty: 100
$45.49 pkg | $0.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
Wide Range
Mfr. Part Number
R/Y+BOX
Brand
3M
Minimum Single Wire Size
18 AWG
Color Family
Red / Yellow
Minimum Wire Combination
(5) 12 AWG
Description/Special Features
Replaces Red And Yellow Connectors
Minimum Wire Size
18 AWG
Height
0.76 in.
Package Quantity
100
Item
Twist On Wire Connector
Series
Performance Plus
Length
1.17 in.
Shipping Weight
.9 lb.
Maximum Single Wire Size
8 AWG
Type
Wire
Maximum Voltage
600 VAC
Width
0.76 in.
Maximum Wire Combination
(2) 18 AWG to (2) 8 AWG
Wire Connector Style
Wing
Maximum Wire Size
8 AWG
General
For Conductor Material
Copper
Special Features
Replaces Red And Yellow Connectors
For Wire Size
8 AWG
Standards
CSA Certified, CE Marking
High Temperature Application
No
Twist-On Wire Size Ranges
8 AWG – 8 AWG
RoHS Compliant
No
UL 94 Flammability Rating
V-2
Product Description
Work smarter, not harder, with the 3M™ Performance Plus Wire Connector R/Y+. It offers a quick-biting spring so you get a tight, reliable connection every time. This single R/Y+ connector replaces your traditional red and yellow connectors to give you more work room. Use in almost any industrial application where you need to connect and insulate copper wires.
Expertly Selected Product Pairings
Item Barcode
Twist On Wire Connector,18-8
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1DLY9 | Twist On Wire |
 | UNSPSC CODES | 39121409 | |
 | VMRS (ATA) CODES | 053-007-002 | Twist On Wire |
