HUBBELL WIRING DEVICE-KELLEMS

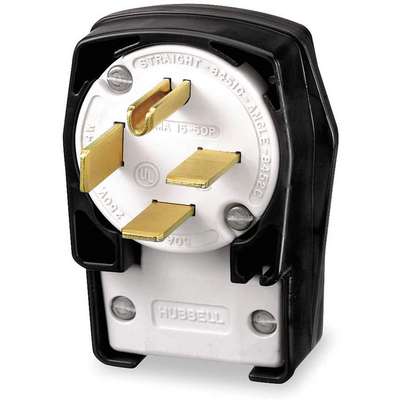

Hubbell Wiring Device-Kellems 50A Industrial Grade Angle Straight Blade Plug, Black/White; NEMA Configuration: 15-50P
Hover over image to magnify
#915445-3 | Pkg Qty: 1
$157.52 pkg | $157.52 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
50 A
Insulation Material
Nylon
Antimicrobial
No
Item
Angle Straight Blade Plug
Brand
HUBBELL WIRING DEVICE-KELLEMS
Material
Nylon
Color Family
Black
Mfr. Part Number
HBL8452C
Connection Orientation
Angled
NEMA Configuration - Plugs & Connectors
15-50
Cord Size
0.625 in. to 1.310 in.
Number of Blades
4
Corrosion Resistant
Yes
Number of Poles
3
Current Rating
50 A
Number of Wires
4
Description
Insulgrip, Grounding
Package Quantity
1
For Maximum Cable Diameter
1.31 in.
Phase
Three
For Minimum Cable Diameter
0.625 in.
Polarized
Yes
Grade
Industrial
Shipping Weight
.8 lb.
Grounding
Grounded
Standards
CSA Certified, FULus, UL Listed
Horsepower
7-1/2 hp
Subcategory
Plugs
Housing Color
Black
Voltage
250V AC
Housing Material
Nylon
Wire Connection Type
Screw Terminals
IP Rating
IP20
Wiring Style
Standard
General
Amps - Plugs and Receptacles
50 A
Phase - Plugs and Receptacles
3
Grade - Plugs and Receptacles
Industrial
Sub-Category
Plugs
HP
7.5
Voltage - Plugs and Receptacles
250V AC
NEMA Plug Configuration - Plugs and Receptacles
15-50P
Product Description
Hubbell® Plugs Heavy-duty cord clamps handle a wide range of cable sizes and hold conductors securely in place. Nylon bodies withstand severe abuse. 4-position angle plugs allow cord to enter from top, bottom, or either side and stay close to wall. High-Ampere Plugs and Receptacles CSA Certified. Note: See page 611 for NEMA configurations.
Expertly Selected Product Pairings
Item Barcode
Angle Plug,15-50P,50A,250VAC 3
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5C796 | Angle Plug, 15-50P,50A, |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Angle Plug, 15-50P,50A, |
