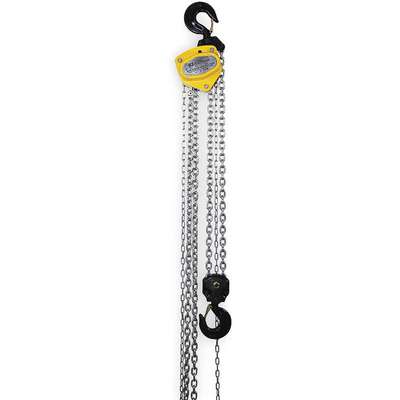

Manual Chain Hoist, 10,000 lb. Load Capacity, 10 ft. Hoist Lift, 1-7/8" Hook Opening

Manual Chain Hoist, 10,000 lb. Load Capacity, 10 ft. Hoist Lift, 1-7/8" Hook Opening
Manual Chain Hoist,10000 Lb.,
Manual Chain Hoist, 10,000 lb. Load Capacity, 10 ft. Hoist Lift, 1-7/8" Hook Opening Video
Manual Chain Hoist, 10,000 lb. Load Capacity, 10 ft. Hoist Lift, 1-7/8" Hook Opening Video
Manual Chain Hoist, 10,000 lb. Load Capacity, 10 ft. Hoist Lift, 1-7/8" Hook Opening Video

#915407-6 | Pkg Qty: 1

$618.86 pkg | $618.86 ea
Item Number 915407-6
Scanner Description Manual Chain Hoist,10000 Lb.,
Inventory Status Drop Ship Item
Weight 91.75 lb
Brand OZ LIFTING PRODUCTS

Technical Specifications

Brake
Weston Style Brake
Includes
Over Load Limiter
Brand
OZ LIFTING PRODUCTS
Item
Manual Chain Hoist
Hoist Lift
10 ft.
Load Capacity
10000 lb.
Hoist Mount
Hook Mounted - No Trolley
Mfr. Part Number
OZ050-10CHOP
Hoist Overload Protection
Yes
Min. Between Hooks
25 in.
Hook Opening
1-7/8 in.
Pack Quantity
1
Housing Depth
7-1/4 in.
Pull to Lift Rated Load
90 lb.
Housing Length
9 in.
Standards
HMI and ANSI/ASME B30.16, CE, AS 1418.2
Housing Width
9-15/16 in.

Product Description

1/2- to 30-Ton Manually Operated Hand Chain Hoists with Overload

  • Load-tested at 150% capacity Forged alloy steel hooks with cast-steel safety latch and bolt-and-lock nut Weatherproof load-holding Weston-type brake with twin pawl design
  • When activated, factory-set overload protection will not let hoist operate, but allows operator to lower load (if lifting) or release load (if pulling). Overload protection resets itself; never needs resetting or recalibrating. Hand-wheel design enables hand chain to feed directly into wheel sprocket from any direction or angle. Lower block has a thrust bearing, allowing easy rotation of a suspended load without twisting load chain. Fully enclosed gearing protects gears from debris and contamination. Gears and shafts run on roller bearings.
  • Meet HMI and ANSI/ASME B30.16, CE, AS 1418.2 standards.
Item Barcode
9154076
  Name Item Description
Grainger Dropship Grainger Dropship 2YAZ5 Manual Chain Hoist,10000
UNSPSC CODES UNSPSC CODES 24101602
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Manual Chain Hoist,10000
