HUBBELL WIRING DEVICE-KELLEMS

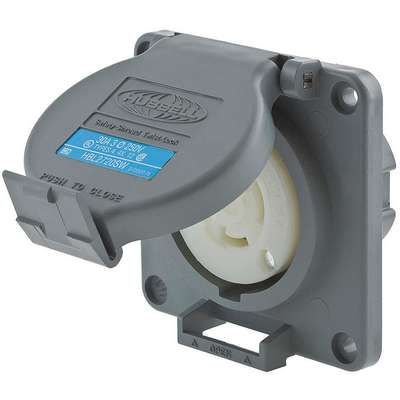

Hubbell Wiring Device-Kellems Gray Watertight Locking Receptacle, 30 Amps, 250VAC Voltage, NEMA Configuration: L15-30R
Hover over image to magnify
#915331-4 | Pkg Qty: 1
$185.07 pkg | $185.07 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AFCI
No
Minimum Wire Size
16 AWG
Amperage
30 A
Mount Type
Flush
Amps
30 A
Mounting Type
Flush Mount
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L15-30
Color Family
Gray
NEMA Enclosure Rating
12, 4, 4X
Connection Orientation
Straight
NEMA Rating
12, 4, 4X
Contact Material
Brass
NEMA Receptacle Configuration
L15-30R
Cover Type
Locking Flip-Up Cover
Number of Gangs
1
Current Rating
30 A
Number of Poles
3
Flange Type
Non-Flanged
Number of Wires
4
Flange Width
Not Applicable
Package Quantity
1
Grade
Industrial
Phase
Three
Grounding
Grounded
Polarized
Yes
HP
3 HP
Shipping Weight
.6 lb.
Horsepower
3 hp
Shrouded
Yes
Housing Color
Gray
Special Features
With Locking Cover
Housing Material
Valox
Standards
CSA Certified Type 4 4X and Type 12, UL Listed
IP Rating
IP69K
Subcategory
Shrouded Receptacles
Item
Watertight Locking Receptacle
Type
Watertight Safety Shroud Twist Lock
Material
Reinforced Nylon
UL 94 Flammability Rating
V-2
Material of Construction
Impact Modified PBT
Voltage
250V AC
Maximum Operating Temperature
75 °C
Voltage Rating
250V AC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
Mfr. Part Number
HBL2720SW
Wiring Style
Standard
Minimum Operating Temperature
-40 °C
General
HP
3.0
Special Features
With Locking Cover
Product Description
Help prevent water ingress in electrical connections under hose-down conditions with a watertight, safety-shroud twist-lock. It features stainless steel hardware, a closure cap, 1-pc. thermoplastic housing, and lockout-tagout hole.
Item Barcode
Receptacle,250V,30A,L15-30R,3P,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4CV43 | Receptacle, 250V,30A,L15- |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 053-006-009 | Receptacle, 250V,30A,L15- |
