DAYTON

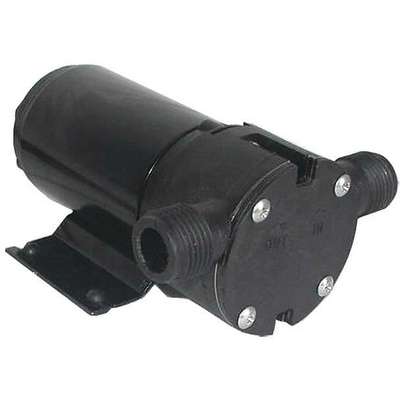

Pump: 1/12 hp HP, 12V DC, 7.5, 3/4 MGHT, 40 ft Max. Head (Ft.), 17.3 psi Max. Pressure (PSI)
#915324-2Pkg Qty: 1
$208.67 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
7.5 A
Brand
DAYTON
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
Cord Length
1 ft.
Horsepower
1/12
Housing Material
Plastic
Impeller Material
Nitrile
Item
Pump
Maximum Pressure
17.3 psi
Maximum Viscosity
3000 SSU
Mfr. Part Number
3ACA5
Motor Type
TEFC
Package Quantity
1
RPM
4500
Shaft Material
Stainless Steel
Shipping Weight
4.07 lb.
Voltage
12 VDC
Amps
7.5 A
Maximum Viscosity
3000 SSU
Brand
DAYTON
Mfr. Part Number
3ACA5
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
Motor Type
TEFC
Cord Length
1 ft.
Package Quantity
1
Horsepower
1/12
RPM
4500
Housing Material
Plastic
Shaft Material
Stainless Steel
Impeller Material
Nitrile
Shipping Weight
4.07 lb.
Item
Pump
Voltage
12 VDC
Maximum Pressure
17.3 psi
General
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
GPM of Water @ 0 Ft. of Head
4.0
GPM of Water @ 10 Ft. of Head
3.4
GPM of Water @ 11 Ft. of Head
3.2
GPM of Water @ 20 Ft. of Head
2.6
GPM of Water @ 23 Ft. of Head
2.8
GPM of Water @ 30 Ft. of Head
1.3
GPM of Water @ 40 Ft. of Head
0.0
Includes
Manual
Max. Head (Ft.)
40 ft
Maximum SSU @ 1725 RPM
3000
Prime in Feet
7.5
Seal
Nitrile Lip
Self-Priming
Yes
Temp. Range (F)
185
Type
Flexible Impeller
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
Includes
Manual
GPM of Water @ 0 Ft. of Head
4.0
Max. Head (Ft.)
40 ft
GPM of Water @ 10 Ft. of Head
3.4
Maximum SSU @ 1725 RPM
3000
GPM of Water @ 11 Ft. of Head
3.2
Prime in Feet
7.5
GPM of Water @ 20 Ft. of Head
2.6
Seal
Nitrile Lip
GPM of Water @ 23 Ft. of Head
2.8
Self-Priming
Yes
GPM of Water @ 30 Ft. of Head
1.3
Temp. Range (F)
185
GPM of Water @ 40 Ft. of Head
0.0
Type
Flexible Impeller
Product Description
Oil Change Pumps and Systems
- Self-priming 4000 rpm thermally protected motors
- Pumps
- Plastic pumps have flexible nitrile impellers and lip seals, to provide fluid transfer with no metal-to-metal contact. 3/4" MGHT input/output ports. TEFC motors, except No. 3ACA4 is ODP.
