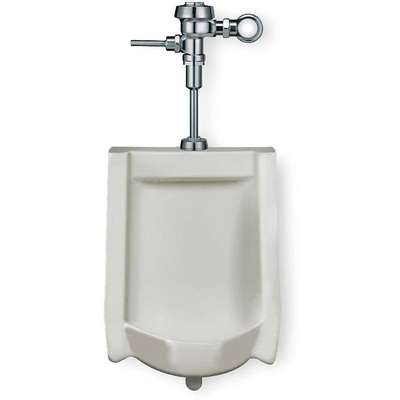

Washout, Wall, Urinal, Gallons per Flush 0.125, Height (In.) 27, Width (In.) 17, White

Hover over image to magnify
Urinal,Washout,1/8 Gallon,
Urinal,Washout,1/8 Gallon,

#915222-8 | Pkg Qty: 1

$500.12 pkg | $500.12 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SLOAN
Material
Vitreous China
Color Family
White
Mfr. Part Number
WEUS1000.1001
Connection
3/4 in. Top Spud
Mounting
Wall
Depth
14-1/4 in.
Package Quantity
1
Height
27 in.
Shipping Weight
74 lb.
Item
Urinal
Width
17 in.
General
Brand and Series
Sloan
Includes Flush Valve Cover
Yes
Flush Handle
Oscillating Handle
Includes Toilet Tank
No
Flush Mode
Single Flush
Includes Urinal
Yes
Flush Valve Type Included
Manual
Rough-In
11 1/2 in
Flushing Method
Washout
Spud Connection Size
3/4 in
Gallons per Flush
0.125
Spud Location
Top
Green Certification/Other Recognition
WaterSense Certified
Standards
ADA, ASSE 1037, ANSI/ASME, A112.19.2, And Military Specification V-29193
Green Environmental
Urinal Uses 0.5 gpf or Less
Urinal Material
Vitreous China
Includes
Adjustable Tailpiece And Vandal Resistant Outlet Strainer, Flushometer, Vandal Resistant Chrome Plated Housing
Urinal Mounting Style
Wall
Includes Bowl
No
Urinal Product Type
Washout Urinal with Manual Flush Valve

Product Description

Wall-mount flush-valve urinals with top spud are off-the-floor fixtures that allow thorough cleaning, connect to a wall waste line, and work with an exposed flush valve for unblocked access during maintenance. These fixtures have a lower weight capacity than floor-mounted fixtures, but provide a streamlined look and full access for cleaning the floor and urinal surfaces. They have a back opening for the waste line and a spud atop the fixture for connecting to a flush valve (flushometer).
