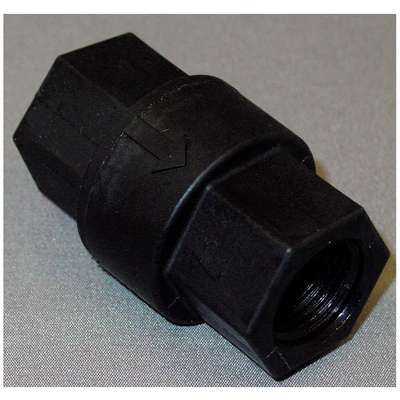

3/8" Check Valve, Archetype: Single, Inline Ball Cone, FNPT x FNPT
Hover over image to magnify
#915165-4 | Pkg Qty: 1
$19.65 pkg | $19.65 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
FP CHK 693-6F6F-F
Connection Type
FNPT
Mounting Position
Vertical or Horizontal
Item
Ball Cone Spring Check Valve
Overall Height
1-15/64 in.
Length
2 in.
Package Quantity
1
Material
Glass Filled Polypropylene
Shipping Weight
.05 lb.
Maximum Temperature
140 deg. F
Width
1-15/64 in.
General
Application - Valves
General Purpose
Max. Water Pressure - Valves
125 psi
Body Material - Valves
Glass Filled Polypropylene
Mechanism and Body Design
Inline Ball Cone
Flow Design
Single
Min. Temp. - Valves
-20 Degrees F
Full Flow - Valves
Yes
Mounting Orientation
Horizontal, Vertical
Max. Temp. - Valves
140 Degrees F
Pipe or Tube Size
3/8 in
Product Description
Compact ball cone spring check valve features a light cracking pressure, high flow rate, and a positive seal even at very low back pressure or with a slight vacuum. Model is designed with a thin elastomer disc supported by a poppet that seals on the seat. Check valve is suitable for a wide range of air and fluid applications.
Item Barcode
Ball Cone Spring Check Valve,3/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4DJC7 | Ball Cone Spring Check |
 | UNSPSC CODES | 40141622 | |
 | VMRS (ATA) CODES | 032-004-002 | Ball Cone Spring Check |
