BURNDY

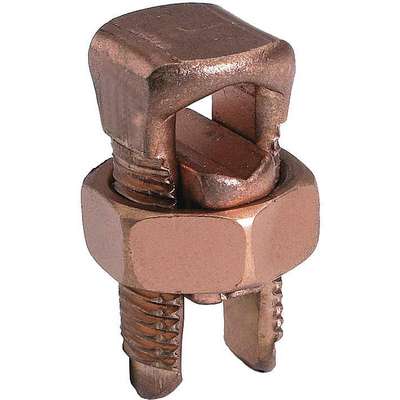

Burndy Split-Bolt Connector, Copper Alloy, Min. Tap Conductor w/1 Max. Main (AWG) 14 str
Hover over image to magnify
#914997-4 | Pkg Qty: 1
$7.81 pkg | $7.81 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Copper
Minimum Operating Temperature
32 °F
Brand
BURNDY
Minimum Tap Conductor w/1 Maximum Main
14 str
Color Family
Copper
Overall Length
1.14 in.
Compatible With
Servit
Overall Width
0.45 in.
Connects
Copper to Copper Wire
Package Quantity
1
Head Style
Square Head
Pressure Bar Material
Copper Alloy
Item
Split-Bolt Connector
Shipping Weight
.01 lb.
Material
Copper Alloy
Special Features
Compact, High-Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Cracking And Corrosion
Material of Construction
Copper Alloy
Standards
CSA Certified, UL 486A, UL 486B, UL 486D
Maximum Voltage
35,000 V
Wire Range
8 str to 6 sol
Mfr. Part Number
KS17
Wire Size Range
8 AWG 6 AWG
General
Body Finish
Unplated
For Minimum Run Wire Size
8 AWG
Compatible Manufacturer Model Number
SC4
For Minimum Tap Wire Size
14 AWG, 8 AWG
Compatible Part Number
22C087
For Run Wire Size
6 AWG
Compatible with Product Type
Split Bolt Covers
Hex Nut Size
0.63 in
Compatible with Series
Servit
RoHS Compliant
Yes
For Maximum Run Wire Size
6 AWG
Torque
165 in-lb
For Maximum Tap Wire Size
6 AWG
UL Standards
UL 486A-486B
Product Description
Split-Bolt Connector is highly resistant to cracking and corrosion. Provides maximum pressure and a secure connection on all combinations of run and tap conductors.
Item Barcode
Connector, Split Bolt Cu/Cu,8
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 22A932 | Connector, Split Bolt |
 | UNSPSC CODES | 39121409 | |
 | VMRS (ATA) CODES | 053-008-004 | Connector, Split Bolt |
