DAYTON

Hand Operated Drum Pump: Siphon, 15 gal_30 gal_55 gal For Container Size, PE/PVC/Viton

Hover over image to magnify

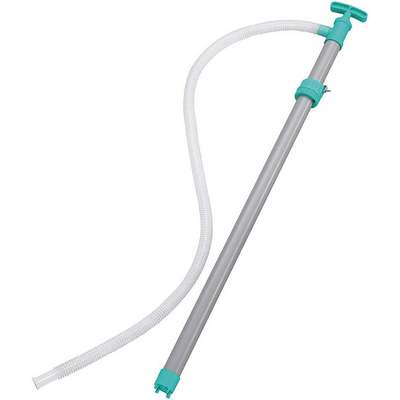

Hand Drum Pump,Piston,PVC,1In
Hand Drum Pump,Piston,PVC,1In

#914994-4 | Pkg Qty: 1

$44.63 pkg | $44.63 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action Type
Siphon
Ounces per Stroke
8 oz.
Adapter Diameter
2 in.
Outlet Size
1"
Adapter Material
Polypropylene
Overall Length
43 in.
Adapter Type
Bung
Pack Quantity
1
Brand
DAYTON
Piston
PVC
Discharge Tube Length
60"
Piston Material
Viton
Discharge Tube Outlet ID Size
1"
Power Source
Hand Operated
Discharge Tube Outlet Outside Diameter
1-1/4"
Pump Body Material
PVC
Discharge Tubing Material
PVC
Seal
PVC
For Use On
55 gal. Drums
Seal Material
Viton
GPM
7
Self-Priming
Yes
Hand Operated Pump Action Type
Hand Operated Piston Pumps
Shipping Weight
3.1 lb.
Height
3-3/4 in.
Suction Design
Pump Body
Housing Material
PVC
Suction Pipe Size
1-1/2 in.
Inlet Size
1"
Suction Tube Length
37 in.
Item
Hand Operated Drum Pump
Suction Tube Outlet Outside Diameter
1-1/2 in.
Maximum Liquid Temperature
140°F
Suction Tube Type
Pump Body
Maximum Viscosity
3000 SSU
Type
Piston Action
Metered
No
Warranty
5ZZX3
Mfr. Part Number
2UY14
Wetted Materials
PE, PVC, Viton
General
Application
Low-Viscosity Fluids
Includes
Hose Clamp, Adapter and PE Clear Flexible Hose
Bung Connection Dia.
2 in
Includes Bung Adapter
Yes
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Kerosene, Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Includes Discharge Hose
Yes
Discharge Tube Outlet ID
1 in
Includes Nozzle
No
Discharge Tube Outlet OD
1 in
Includes Suction Tube
Yes
Features
Light Weight
Max. Flow Rate
12 oz per Stroke
For Container Size
15 gal, 30 gal, 55 gal
Max. Fluid Temp.
140 Degrees F
For Container Type
Bucket, Drum, Pail
Not Recommended Chemicals
DEF, Methyl Ethyl Ketone (MEK)
For Media Type
Antifreeze, Automatic Transmission Fluid, Bleach, Diesel Fuel, Ethanol, Kerosene, Water
Pump Package Type
Basic Pump with Discharge Hose
For Use With
Low-Viscosity Fluids
Suction Tube OD
1 1/2 in
Housing Material - Pumps
PVC

Product Description

Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
