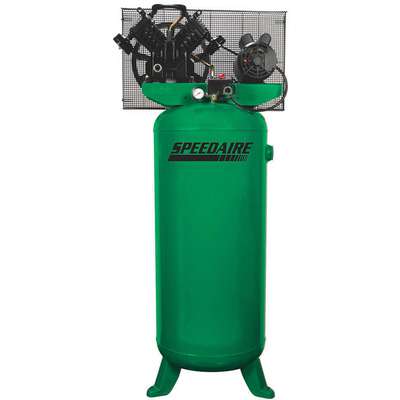

3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 60 gal

3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 60 gal

#914992-2 | Pkg Qty: 1

$1,262.69 pkg | $1,262.69 ea
Item Number 914992-2
Scanner Description Electric Air Compressor,1 Stage
Inventory Status Drop Ship Item
Weight 384 lb
Brand SPEEDAIRE

Technical Specifications

(F)NPT Outlet
3/4 in.
Maximum Pressure
140 psi
Air Consumption
scfm
Mfr. Part Number
4ME98
Amperage
13.4-13.2/6.6 A
Number of Stages
1
Amps AC
13.4 - 13.2/6.6
Overall Height
71 in.
Brand
SPEEDAIRE
Overall Length
23 in.
Compressor Package Type
Base Model
Overall Width
31 in.
Compressor Type
Tank Mounted
Pack Quantity
1
Control
Pressure Switch
Phase
3
Cylinder Material
Cast Iron
Pump Location
Tank Mounted
Duty Cycle
80/20
Pump RPM
950
Finish
Powder Coated
Pump Type
Cast Iron
Free Air CFM @ 90 PSI
16
Standards
ASME, UL/CSA, California Code 462(L)(2), UL1450
Free Air CFM @ Max Pressure
14.2
Tank Size
60 gal.
Horsepower
5
Tank Style
Vertical
Hz
60
Tank Type
Vertical
Input Voltage
208 to 240VAC, 480VAC
Type
Single Stage Splash Lubricated
Item
Electric Air Compressor
Voltage
208-230/460
Lubrication Type
Splash Lubricated
Width
31 in.

Product Description

Air compressor unit is intended to provide compressed air to power pneumatic tools and operate spray guns. The pumps supplied are oil lubricated. A small amount of oil carryover is present in the compressed air stream. Applications requiring air free of oil or water should have the appropriate filter installed. The air compressor unit must be mounted on a solid floor or solid ground. Any other use of this unit will void the warranty and the manufacturer will not be responsible for problems or damages resulting from such misuse.
