DAYTON

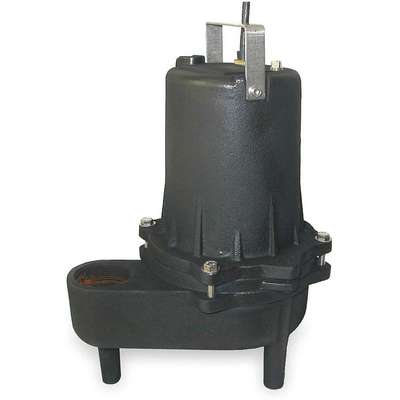

Sewage Ejector Pump, HP 1/2, Max. Head 24.0 ft., Flow Rate at 15 Ft. of Head 80.0 gpm
#914966-6Pkg Qty: 1
$935.07 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
10.5 A
Base Material
Cast Iron
Brand
DAYTON
Cord Length
15 ft.
Diameter
10-27/32 in.
Discharge NPT
2 in.
GPM of Water @ 15 Ft. of Head
80
Height
15-1/2 in.
Horsepower
1/2
Housing
Cast Iron
Housing Material
Cast Iron
Impeller Material
Cast Iron
Input Phase AC
1
Item
Submersible Sewage Pump
Maximum Diameter Solids
2 in.
Maximum Head
24 ft.
Maximum Liquid Temperature
200°F
Maximum Temperature (Deg. F)
200
Mfr. Part Number
4CRE5
Motor RPM
1750
Motor Type
Hermetically-Sealed, PSC, Oil-Filled
Package Quantity
1
Phase
1
Pump Body Material
Cast Iron
Pump HP
1/2
Pump Type
Manual
RPM
1750
Shaft Material
Stainless Steel
Shaft Seal Material
Silicon Carbide, Viton
Shipping Weight
53 lb.
Switch Type
None
Top Material
Cast Iron
Voltage
120 VAC
Amps
10.5 A
Maximum Temperature (Deg. F)
200
Base Material
Cast Iron
Mfr. Part Number
4CRE5
Brand
DAYTON
Motor RPM
1750
Cord Length
15 ft.
Motor Type
Hermetically-Sealed, PSC, Oil-Filled
Diameter
10-27/32 in.
Package Quantity
1
Discharge NPT
2 in.
Phase
1
GPM of Water @ 15 Ft. of Head
80
Pump Body Material
Cast Iron
Height
15-1/2 in.
Pump HP
1/2
Horsepower
1/2
Pump Type
Manual
Housing
Cast Iron
RPM
1750
Housing Material
Cast Iron
Shaft Material
Stainless Steel
Impeller Material
Cast Iron
Shaft Seal Material
Silicon Carbide, Viton
Input Phase AC
1
Shipping Weight
53 lb.
Item
Submersible Sewage Pump
Switch Type
None
Maximum Diameter Solids
2 in.
Top Material
Cast Iron
Maximum Head
24 ft.
Voltage
120 VAC
Maximum Liquid Temperature
200°F
General
Bearing Type
Ball
Body Dia.
10 27/32 in
Discharge Gender
Female
Discharge Standard
NPT

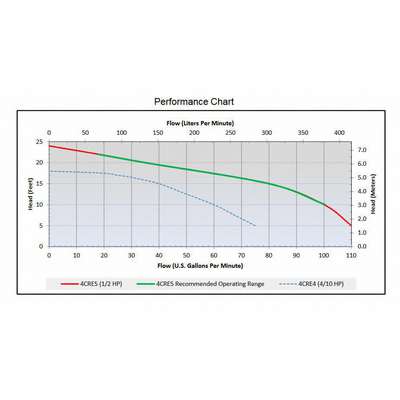

Flow Rate @ 10 Ft. of Head
100 gpm
Flow Rate @ 15 Ft. of Head
80 gpm
Flow Rate @ 20 Ft. of Head
35 gpm
GPM of Water @ 10 Ft. of Head
100
GPM of Water @ 20 Ft. of Head
35
GPM of Water @ 5 Ft. of Head
110
Includes
15 ft. of Nylon Rope
Mechanical Seal
Silicon, Viton
Min. Sump Pit Dia.
18 in
Nominal Voltage
110V AC
Rated Voltage
120V AC
Shaft Seal
Silicon Carbide/Viton
Switch Actuation
No Switch Included
Switch Electrical Connection
No Switch Included
Thermal Protection
Yes
Type
Manual
Bearing Type
Ball
Includes
15 ft. of Nylon Rope
Body Dia.
10 27/32 in
Mechanical Seal
Silicon, Viton
Discharge Gender
Female
Min. Sump Pit Dia.
18 in
Discharge Standard
NPT
Nominal Voltage
110V AC
Flow Rate @ 10 Ft. of Head
100 gpm
Rated Voltage
120V AC
Flow Rate @ 15 Ft. of Head
80 gpm
Shaft Seal
Silicon Carbide/Viton
Flow Rate @ 20 Ft. of Head
35 gpm
Switch Actuation
No Switch Included
GPM of Water @ 10 Ft. of Head
100
Switch Electrical Connection
No Switch Included
GPM of Water @ 20 Ft. of Head
35
Thermal Protection
Yes
GPM of Water @ 5 Ft. of Head
110
Type
Manual
Product Description
These high-temperature submersible sump pumps transfer hot liquids such as furnace condensate or waste from boiler blowdown. They are also for use in plant washdown sump pits, public-utility underground transformer vaults, and industrial cleaning sump pits.
