SCHNEIDER ELECTRIC

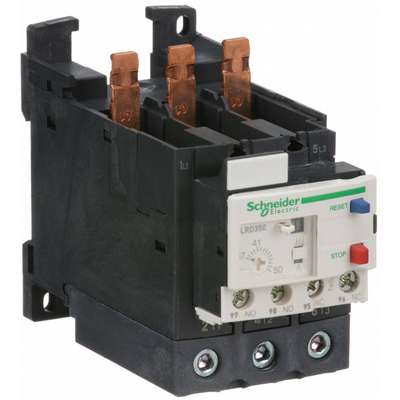

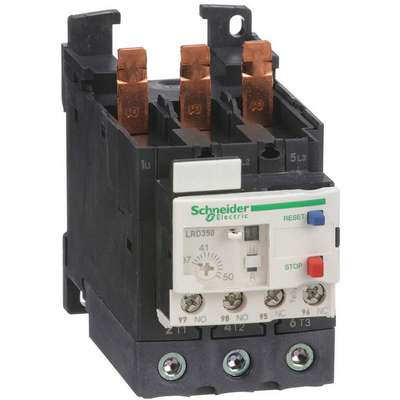

Schneider Electric Overload Relay, Trip Class: 10, Current Range: 37.0 to 50.0A, Number of Poles: 3
#914859-2Pkg Qty: 1
$190.61 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Item
Overload Relay
Mfr. Part Number
LRD350
Package Quantity
1
Shipping Weight
.9 lb.
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Item
Overload Relay
Shipping Weight
.9 lb.
Mfr. Part Number
LRD350
General
Body Depth - Relay
4.84 in
Body Height - Relay
2.76 in
Body Width - Relay
2.17 in
Current Range
37.0 to 50.0A
Depth
4.84 in.
Features
Single Phase Sensitivity, Differential
For Use With
TeSys D LC1D40A thru LC1D65A Contactors, Direct Mounting to LC1 with Ever Link Terminations D40A-D65A
Height
2.76 in.
Number of Poles
3
Overall Height - Relay
2.76 in
Overload Relay Current Range
37 to 50A
Reset Type - Relay
Manual
Sensing Method
Bimetallic
Separate Mounting
Yes
Standards
UL, CSA, IEC, ATEX D 94/9/CE
Starter Type
IEC
Trip Class
10
Trip Class - Overload
10
Type
IEC, Class 10 w/Single Phase Sensitivity
Use With - Contactors and Starters
Mfr. Series LC1D40A to LC1D65A Contactors
Voltage
600 VAC
Width
2.17 in.
Body Depth - Relay
4.84 in
Reset Type - Relay
Manual
Body Height - Relay
2.76 in
Sensing Method
Bimetallic
Body Width - Relay
2.17 in
Separate Mounting
Yes
Current Range
37.0 to 50.0A
Standards
UL, CSA, IEC, ATEX D 94/9/CE
Depth
4.84 in.
Starter Type
IEC
Features
Single Phase Sensitivity, Differential
Trip Class
10
For Use With
TeSys D LC1D40A thru LC1D65A Contactors, Direct Mounting to LC1 with Ever Link Terminations D40A-D65A
Trip Class - Overload
10
Height
2.76 in.
Type
IEC, Class 10 w/Single Phase Sensitivity
Number of Poles
3
Use With - Contactors and Starters
Mfr. Series LC1D40A to LC1D65A Contactors
Overall Height - Relay
2.76 in
Voltage
600 VAC
Overload Relay Current Range
37 to 50A
Width
2.17 in.
Product Description
TeSys™ IEC Contactors and Overload Relays For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail- or panel-mount. CSA and CE Certified. Overload Relays For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
